• Nylon cable gland / IP68 / non-metallic

500 series

Article: 00017971

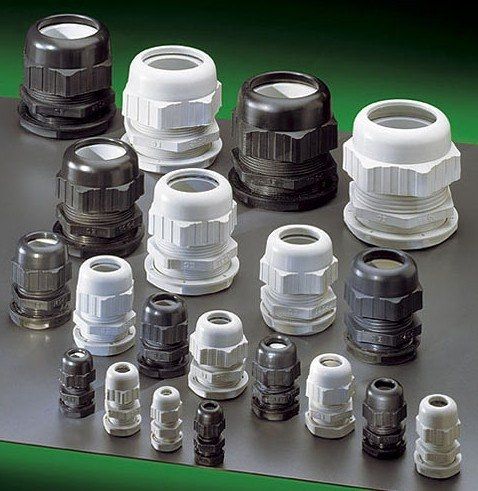

Nylon cable gland / IP68 / non-metallic

CONSTRUCTIVE TECHNICAL CHARACTERISTICS

Material: made of rigid 6.6 nylon, gasket made of NBR vulcanized rubber at higt grip performances.
Self-extinguishing degree: V2 to UL94.
Protection degree: IP68 (water-tight at submersion).
Standard colours: Grey RAL 7035 or Black.
Resistance to abnormal heat (Glow Wire Test): up to 750°C.
Installation temperature: min. -30°C, max. +90°C.
Heat resistance for limited time: up to 120°C.
Cross-threading resistance: tested with 5 Kg pulling force for 1 hour.
Metric pitch manufactured according to EN 50262 standard and PG pitch according to DIN 40430 standard.

Specifications

  • Material: nylon
  • Protection level: IP68
  • Other characteristics: non-metallic
