Cable Reels Decoilers

C E F Srl

  • Coil reel / manual / mobile / open-drum

Wire 1001/1200, 0800.1001/1200

Article: 00018486

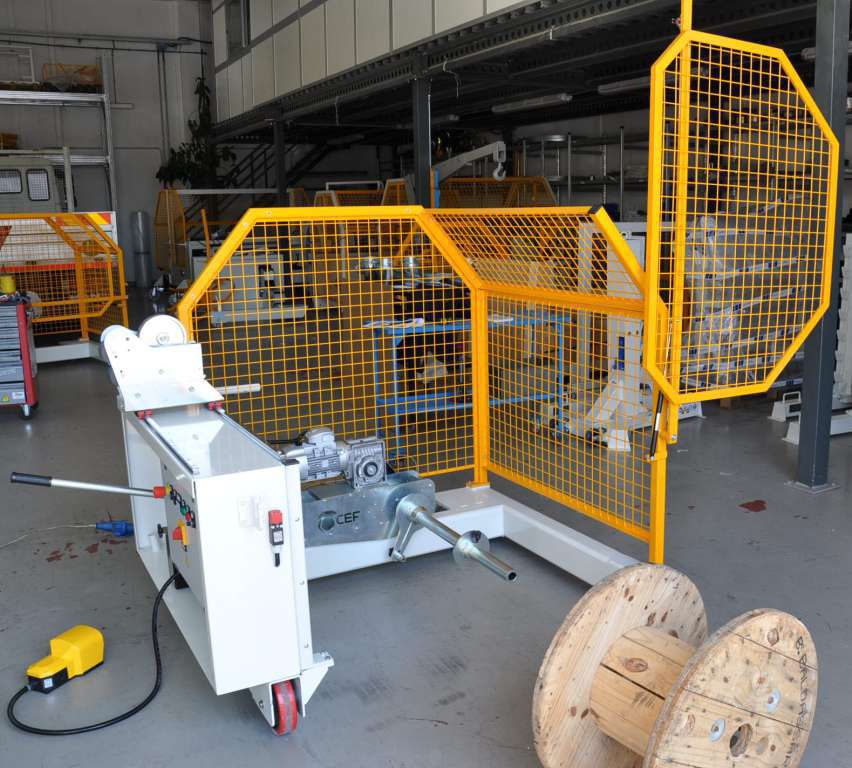

Coil reel / manual / mobile / open-drum

This machine is designed to allow operators to easily and quickly wind drums and coils.
The unique characteristic of this machine lies in the coil spool that is fitted directly onto the machine to reduce the time required to carry out single operations.

General characteristics

FRAME: in hollow and high resistance steel profiles with protection guards and safety limit switch
WHEELS: to move the truck
BRAKE: on rear wheels to simplify the winding of the reel
HOISTING SYSTEM: manual hydraulic pump with hydraulic piston
DRUM-HOLDER AXIS: fixed; the drum is loaded by moving the truck and centering the hole of the drum
6250.0900 SPOOL with removable wheel: to prepare coils with a diameter of 900 mm and a core with a diameter ranging from a minimum of 300 mm to a maximum of 500 mm, removable wheel for the extraction of coils, shaft-mounted wheel locking device for 125 and 205 mm diameter coils

Specifications

  • Type: coil
  • Rewind: manual
  • Configuration: mobile, open-drum
  • Material: steel
