Cables For Signal Control And Data

Gore Electronics

  • RF cable / robust / flexible / for space applications
  • RF cable / robust / flexible / for space applications

LVDS

Article: 00019209

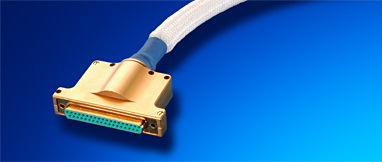

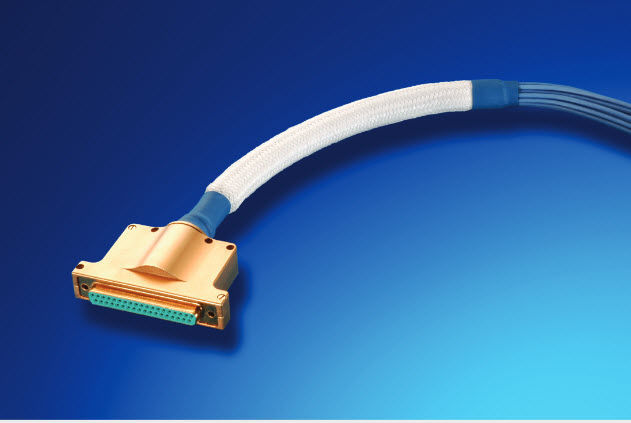

RF cable / robust / flexible / for space applications

Increase Data Integrity Among Electrical Systems

Data integrity is key to maintaining communication among spacecraft systems during a mission. The cables that connect the systems have a direct impact on the quality of the data and the speed of transmission. GORE® Low Voltage Differential Signaling (LVDS) Interconnects offer the best signal integrity because of the combination of their robust design and their outstanding electrical performance, and are listed on the ESA QPL (Qualified Parts List).

GORE® LVDS Interconnects reduce time delay and skew of signal transmission, while consuming less power and minimizing electromagnetic interference. Their small size and minimum bending radius allow for easy installation in tight spaces. Their light weight decreases mass, thereby reducing the amount of energy needed to launch the vehicle into space. The high number of individual lines available in each bundle increases the cable?s flexibility and makes it easier to route the cable.
The Science Behind the Cables

The key to the outstanding performance of GORE® LVDS Interconnects is the proprietary material used in the cable insulation ? expanded polytetrafluoroethylene (ePTFE). This unique insulation provides excellent signal control for applications where tight impedance control is necessary. Expanded PTFE is both chemically inert and thermally stable, which allows GORE® LVDS Interconnects to be used in tight spaces without compromising the strength and quality of signal transmission.

Specifications

  • Type: LVDS
  • Protection level: insulated, robust
  • Other characteristics: flexible, high-speed
  • Applications: for space applications
  • Temperature: Min.: -200 °C (-328 °F)
  • Nominal voltage: 200 V
