Antenna Toolbox

Article: 00019687

Design software / visualization / analysis / 2D/3D

Antenna Toolbox? provides functions for the design, analysis, and visualization of antenna elements and arrays. You can design standalone antennas and build linear, rectangular, and conformal arrays of antennas using predefined elements with parameterized geometry or custom elements.

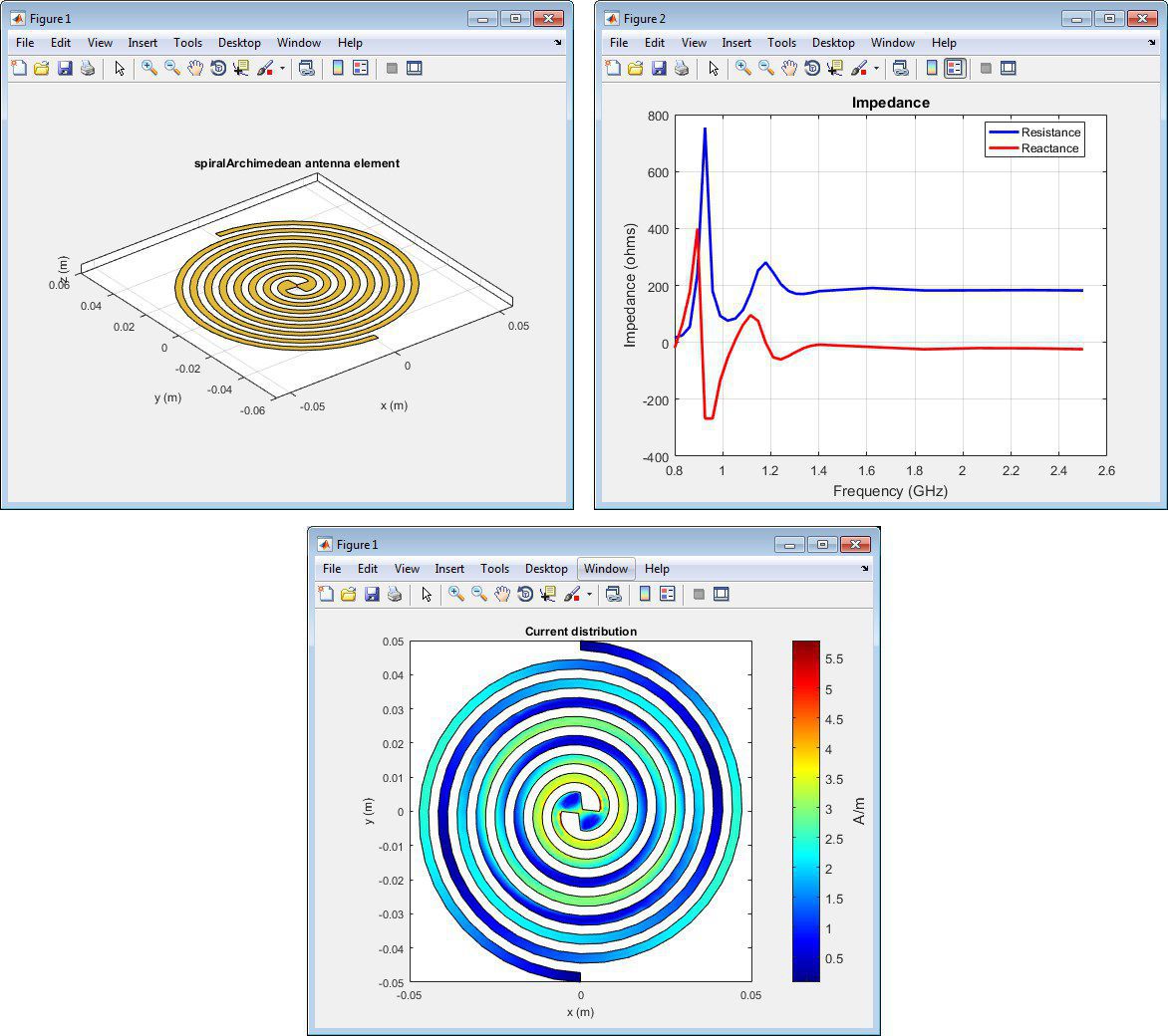

Antenna Toolbox uses the method of moments (MoM) to compute port properties such as impedance, surface properties such as current and charge distribution, and field properties such as the near-field and far-field radiation pattern. You can visualize antenna geometry and analysis results in 2D and 3D.

You can integrate antennas and arrays into wireless systems, and use impedance analysis to design matching networks. Antenna Toolbox provides radiation patterns for simulating beam forming algorithms.

Specifications

  • Function: design, visualization, analysis
  • Type: 2D/3D
