Capacitive Level Sensors

Fischer Mess Und Regeltechnik

  • Capacitive level sensor / for liquids / for tanks / analog
  • Capacitive level sensor / for liquids / for tanks / analog
  • Capacitive level sensor / for liquids / for tanks / analog
  • Capacitive level sensor / for liquids / for tanks / analog
  • Capacitive level sensor / for liquids / for tanks / analog

NC57

Article: 00020456

Capacitive level sensor / for liquids / for tanks / analog

The Model NC57 Capacitive Level Sensor
can be used for level measurement
of
? Clean water
? Waste water and sewage
The NC57 can be applied to metal tanks
and configured for measuring level in
ranges from 400 to 2000 mm.

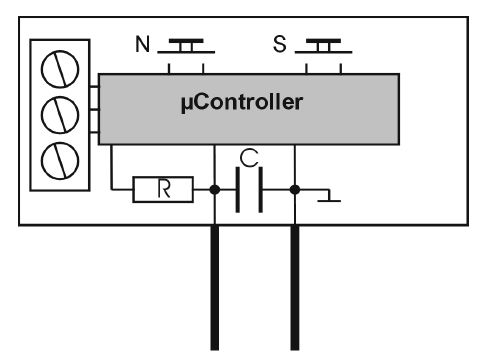

Principles of Operation
The metal rod needs to be mounted with
a fixed distance to the tank wall. It forms
a capacitor when charged with an A.C.
voltage. When the rod is immersed in a
liquid medium, the capacitance value is
a function of the immersed length. With
the probe fixed vertically downward, the
immersed length is proportional to the liquid
level. The capacitance of the probe
is therefore a function of the level.

Specifications

  • Technology: capacitive
  • Measured material: for liquids
  • Applications: for tanks
  • Other characteristics: analog
  • Level range: Min.: 400 mm
  • Process pressure: 10 bar (145.04 psi)
  • Process temperature: 80 °C (176 °F)
