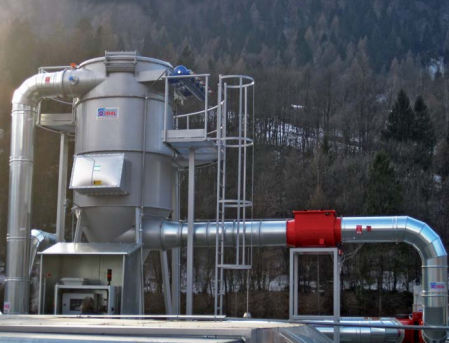

AIRALT series

Article: 00021106

Cartridge filter / dry / high-pressure

OPERATING PRINCIPLE
The contaminated air enters from the hopper inlet and due to the abrupt
lecrease of velocity and the 1ST stage impact filter, the larger partides
lecant and jail into the dust coDection bin.
"he finer or lighter particles flow through the unit, where the filtering car-
ridges are placed; the contaminated air flows through the cartridges
AIRALT) or the sleeves (AIRALT/M) from the outside to the inside, there-
ore the dust deposits outside and the air flows through the filters and is
imitted in a purified condition,
'he gradual accumulation of dust requires a periodical cleaning of the fil-
ers: the backwashing cleaning is carried out by a compressed air blast
vhich causes a high frequency oscillating motion to the filters,
"his air blast technique, also known as "shock wave cleaning" helps
»ackwashing process.

Specifications

  • Designed for: dry
  • Type: cartridge
  • Applications: high-pressure
  • Operating pressure: Min.: 0.5 bar (7.25 psi)
  • Flow rate: Min.: 1500 m³/h (52972 ft³/h)
