  • Thermal shock chamber

CST & CSTL

Article: 00024255

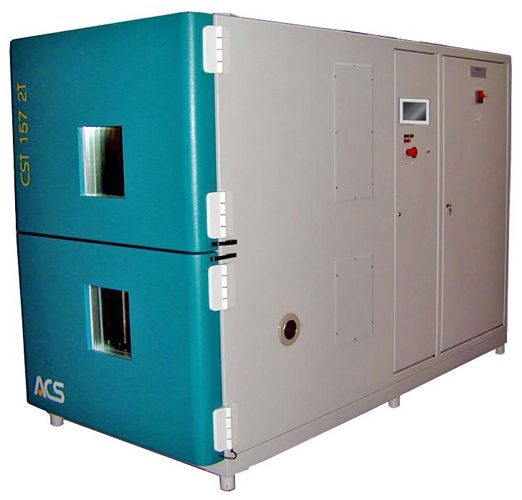

Thermal shock chamber

ACS thermal shock chambers stand out for their utmost flexibility.
Available in several versions to better suit different testing needs, they may be broadly divided into: air-to- air thermal shock chambers (CST series), liquid-to-liquid thermal shock chambers (CSTL series), horizontal or vertical chambers with 2 or 3 compartments corresponding to 2 or 3 different temperature levels (hot, ambient temperature, cold). The capacity of these chambers ranges from 27 to 1000 litres.
The µPLC-based control system consists of a user's interface with keyboard and display and allows pre-defined test cycles to be automatically run.

The new CST-130 S model: The Flapper

CST 130 S: is the new concept of thermal shock which can dramatically improve the space crowded situation of many testing laboratory. The specimen is fixed in its position and the chamber is connected alternatively to hot and cold chambers, this technical solution, capable to perform as a standard thermal shock, not only save mechanisms, power and size, but also give the possibility to perform ESS tests and conventional thermal cycles

Specifications
