LTC10T.10, LTC10T.12

Article: 00024877

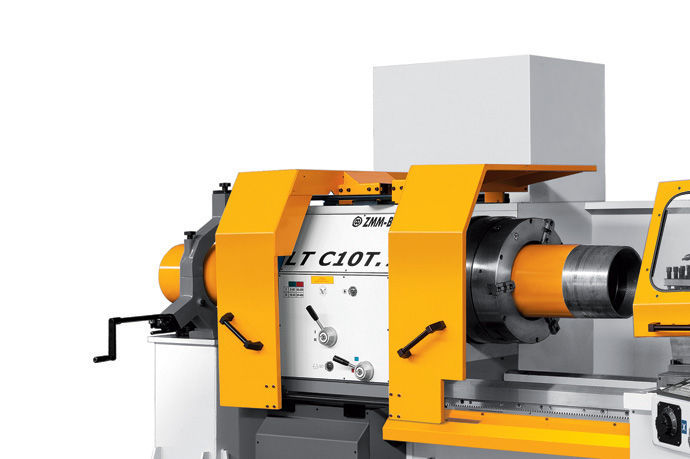

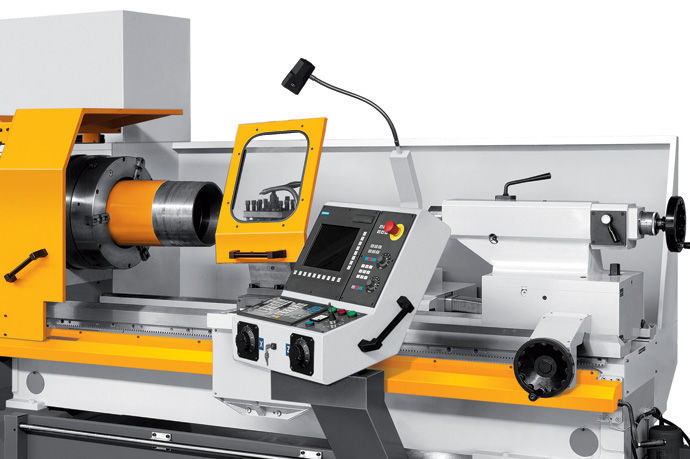

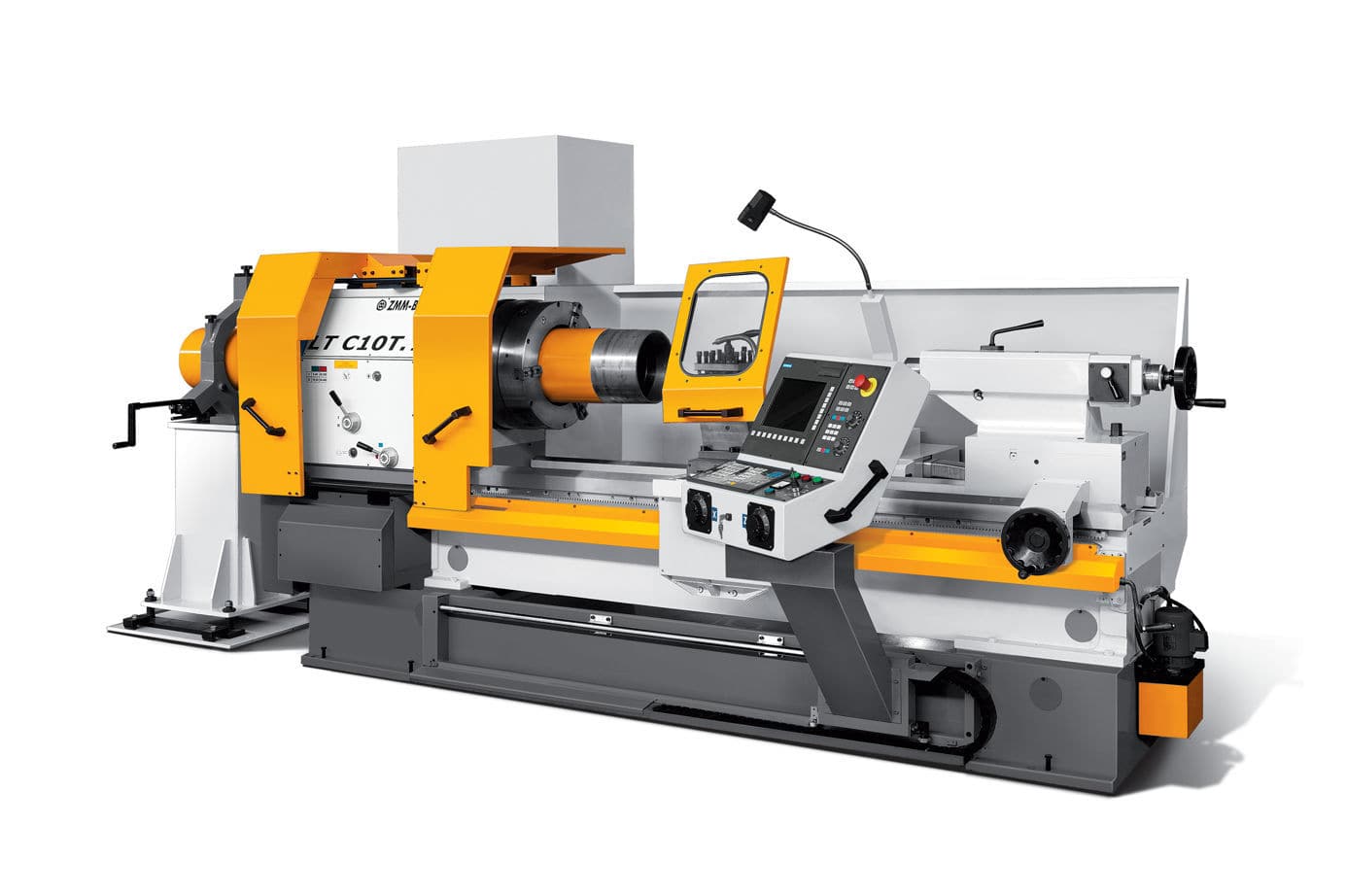

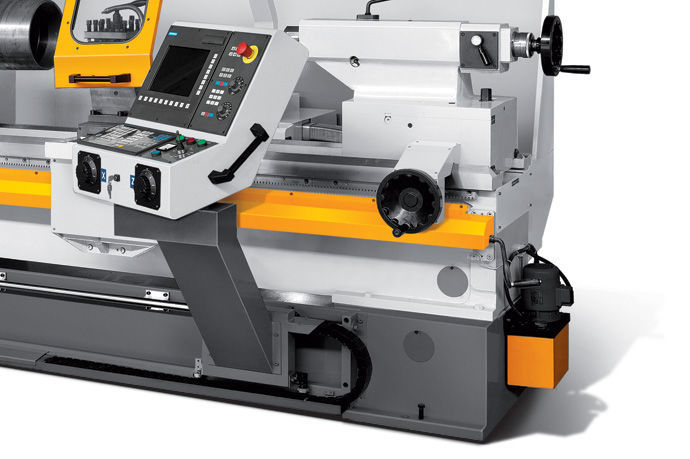

CNC lathe / 2-axis

STANDARD MACHINE SPECIFICATION LTC10T.10 LTC10T.12
CAPACITY Height of centers mm 400
Swing over bed mm 800
Swing over cross slide mm 560
Width of bed mm 560
Distance between centers mm 1500; 2000; 3000; 4000; 5000; 6000
SPINDLE Spindle nose DIN 55027 No A 20 / A2 20
Front bearing diameter mm 380
Spindle bore mm 260 315
HEAD STOCK Number of spindle speeds 4
I - Range rpm 8 - 40
II - Range rpm 16 - 80
III - Range rpm 40 - 200
IV - Range rpm 80 - 400

Specifications

  • Control type: CNC
  • Number of axes: 2-axis
  • Diameter: 800 mm
  • Spindle speed: Min.: 8 rpm (50.27 rad.min-1)
