Collets

Widia Manchester

  • Dead length collet collet chuck / milling / 4-jaw / hydraulic

max. 120 bar | HC25M

Article: 00026204

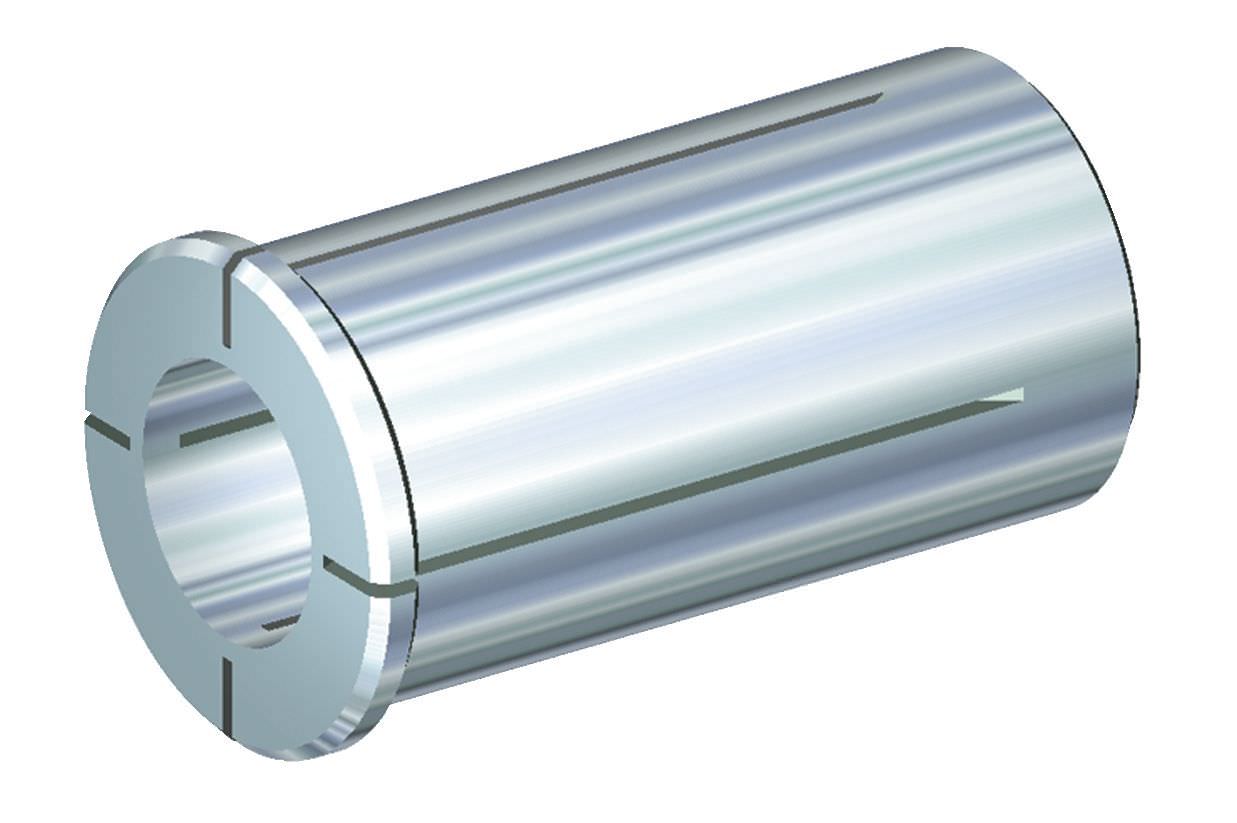

Dead length collet collet chuck / milling / 4-jaw / hydraulic

25mm HC Hydraulic Chuck Sleeves

Features and Benefits

One-piece design with slot configuration to seal coolant.
Cutting tool must be cylindrical and have a through-hole when using coolant.
Capable of up to 120 bar (1,500 psi) coolant pressure.
Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face.
Cutting tools must be in full contact of the sleeve bore length (L9).
Cutting tool shank requirement tolerance is h6 and Ra ? 0,3 µm (12 µ in) surface finish.
Metric bores are available.

Specifications

  • Type: dead length collet
  • Function: milling
  • Number of jaws: 4-jaw
  • Mounting system: hydraulic
  • Diameter: Min.: 3 mm
  • Length: 56 mm
