Compression load cells

Tecsis

  • Compression load cell / single-column / high-capacity

7.5 - 300 t | F1270

Article: 00027249

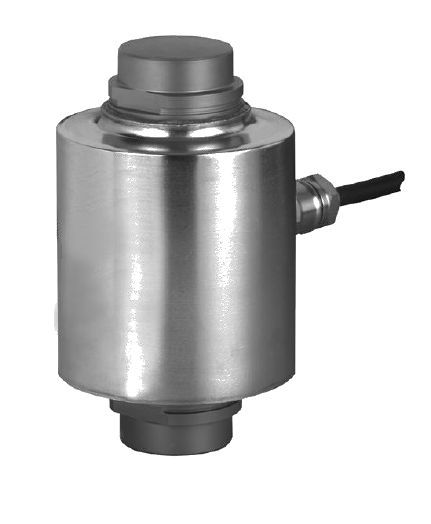

Compression load cell / single-column / high-capacity

This load cell has been developed for use in high capacity container and silo weighing systems. But it can also be used in static force measurement applications. The model F1270 series are available for nominal loads between 7,5 t and 300 t. The design as rocker pin with the spherical load input areas on both sides is the special feature of this load cell.
Features

Developed for container and silo weighing systems
Self centering rocker pin
Combined error 0,04 % of full scale (up to 50t optionally 0,02 % of full Scale)
Completely made of stainless steel
Protection class IP 68 / IP 69k
Full range of mounting kits available

Specifications

  • Type: compression
  • Form: single-column
  • Other characteristics: high-capacity
