ViscoTec Pumpen- U. Dosiertechnik GmbH

  • Self-priming pump / positive-displacement / progressive cavity / worm gear
  • Self-priming pump / positive-displacement / progressive cavity / worm gear

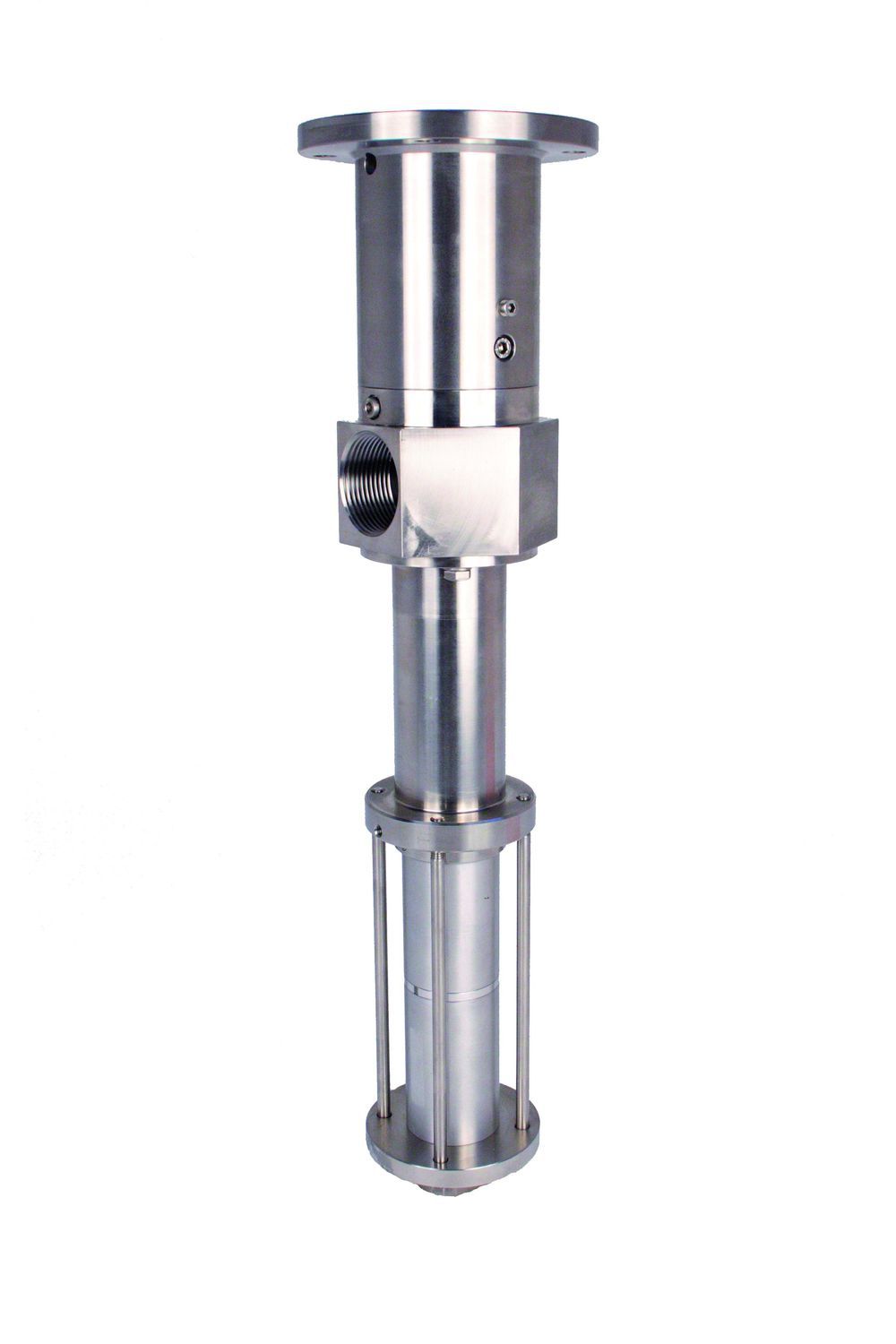

3VMP18

Article: 00027757

Self-priming pump / positive-displacement / progressive cavity / worm gear

ViscoTec dispenser 3VMP18, as a volumetric dispensing pump for larger volumes, ensures smooth and reliable product supplying of abrasive, high-filled or shear sensitive material - with a repeatability of +/- 1 %!

Absolutely precise, consistent and reliable dosing of a wide variety of materials and pumping of larger volumes. Thanks to the special rotor-stator geometry, a valve to prevent material from automatically flowing out is not required. Alternately opening chambers allow the gentle transfer and pulsation-free dispensing of product.

Your advantages:
- no dripping or stringing of product due to reverse-flow
- linear relation between drive speed and dosing volume
- constant dosing volume, also with density, viscosity and temperature fluctuations
- reliable dosing without heating of material
- driven by servo or AC motor
- easy programming of quantity and speed
- low maintenance, quick dismantling
- self-priming, no (or low) product input pressure required (depends on material)

Application:
- dot application, bead application, variable quantities possible
- dosing of all low and high viscosity adhesives and sealants (not anaerobic products)
- particularly suitable for abrasive, high-filled or shear sensitive material
- also used in barrel emptying systems

Technical data:
- dosing volume: ~ 7.5 ml/rev.
- min. dosing quantity: 0.45 ml *
- operating temperature: +10° to +100°C *
- material temperature: -20° to +100°C *
- max. speed: 125 rpm *
- max. permissible torque: 8 Nm
- max. dosing pressure: 30 bar *
- max. supply (input) pressure: 10 bar *
- weight: approx. 8,000 g
* depends on material

Specifications

  • Priming: self-priming
  • Type: positive-displacement, progressive cavity, worm gear
  • Applications: handling, booster, circulation, process, draining, mixing, greasing, drum, feeding, for lubrication unit, high-volume, irrigation, for industrial applications, lubrication, recirculation, mixing, low-pressure, metering
  • Media: for fluids, multi-fluid, for high-viscosity liquids, for abrasive liquids, alcohol, for solvents, for low-viscosity liquids, for viscous liquids, for paper stock, oil, grease, for AdBlue, for inks, paint, for adhesives, dyes, for resin, for chemical products, for acids
  • Operation: electric, pneumatic, manual, electrically-driven, motor-driven, with DC motor, with asynchronous motor, belt-drive, servo-driven, linear with brushless DC motor, electric
  • Material: stainless steel, rubber
  • Domain: for the chemical industry, laboratory, water treatment, cosmetics industry, for the paper industry, for the textile industry, for steel industry, for the printing industry, for the laminate industry, solar, for automotive applications
  • Other characteristics: three-stage, multi-stage, automatic, adjustable, for packaging machines, OEM, variable-speed, skid-mounted, compact, heavy-duty, high-efficiency, wear-resistant, custom, high-flow, computer-controlled, modular, embedded, medium-flow, hermetically-sealed, variable-flow, high-reliability, chemical-resistant, mobile, horizontal, electronic regulation, rugged, controllable, with frequency converter, with seal, rugged, high-performance, with speed controller, linear, with pressure alarm, vertical, corrosion-proof, in-line, flange, radial, adjustable-flow, high-capacity, electronic, continuous-flow, constant-pressure, remote control
