Article: 00027909

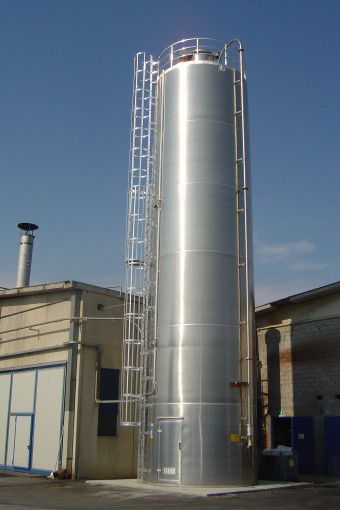

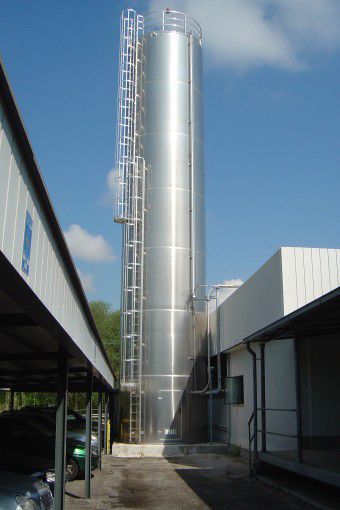

Weighing silo / for powders / granulates / aluminum

Aluminum silos
Applications
External storage of bulk raw materials in powder or granules.
Advantages

Cheap yet top solution for the external storage of raw materials in powder or granules
Storage of products with apparent specific weight up to 1.2 kg/dm3
Long life thanks to construction material
Completely waterproof and weather-proof
Elimination of internal condensation in the version with insulated double wall, and option of fitting a dehumidification system in extreme environmental conditions
Completely hygienic with high degree of preservation of raw material, in compliance with food hygiene standards (EC Regulation 1935/2004)
Compliant with Atex Directive 94/9/EC
Construction according to DIN 1055 and Eurocode standards UNI ENV 1991-4
Construction material fully recyclable after decommissioning
Operating principle

The silo is designed for pneumatic pressure load, usually using the compressor included with the material transporting tanker. The product is fed into the silo through the filling pipe and the air is filtered by a special system (self-cleaning filter) that can be placed on top of the silo or on the ground. The product level within the silo is monitored through simple transmitters (min-med-max), in continuous mode (% of filling), or by weighing the silo, ensuring control and ideal management of the stock, considerably facilitating the organisation of raw material supplies.

Specifications

  • Type: weighing
  • Product applications: for powders, granulates
  • Material: aluminum
  • Capacity: Min.: 5 m³ (176.57 ft³)
