Condensate Drains

Omega Air D O O Ljubljana

  • Condensate drain / automatic / electronic / high-pressure
  • Condensate drain / automatic / electronic / high-pressure
  • Condensate drain / automatic / electronic / high-pressure
  • Condensate drain / automatic / electronic / high-pressure
  • Condensate drain / automatic / electronic / high-pressure

50 bar | EMD HP

Article: 00027994

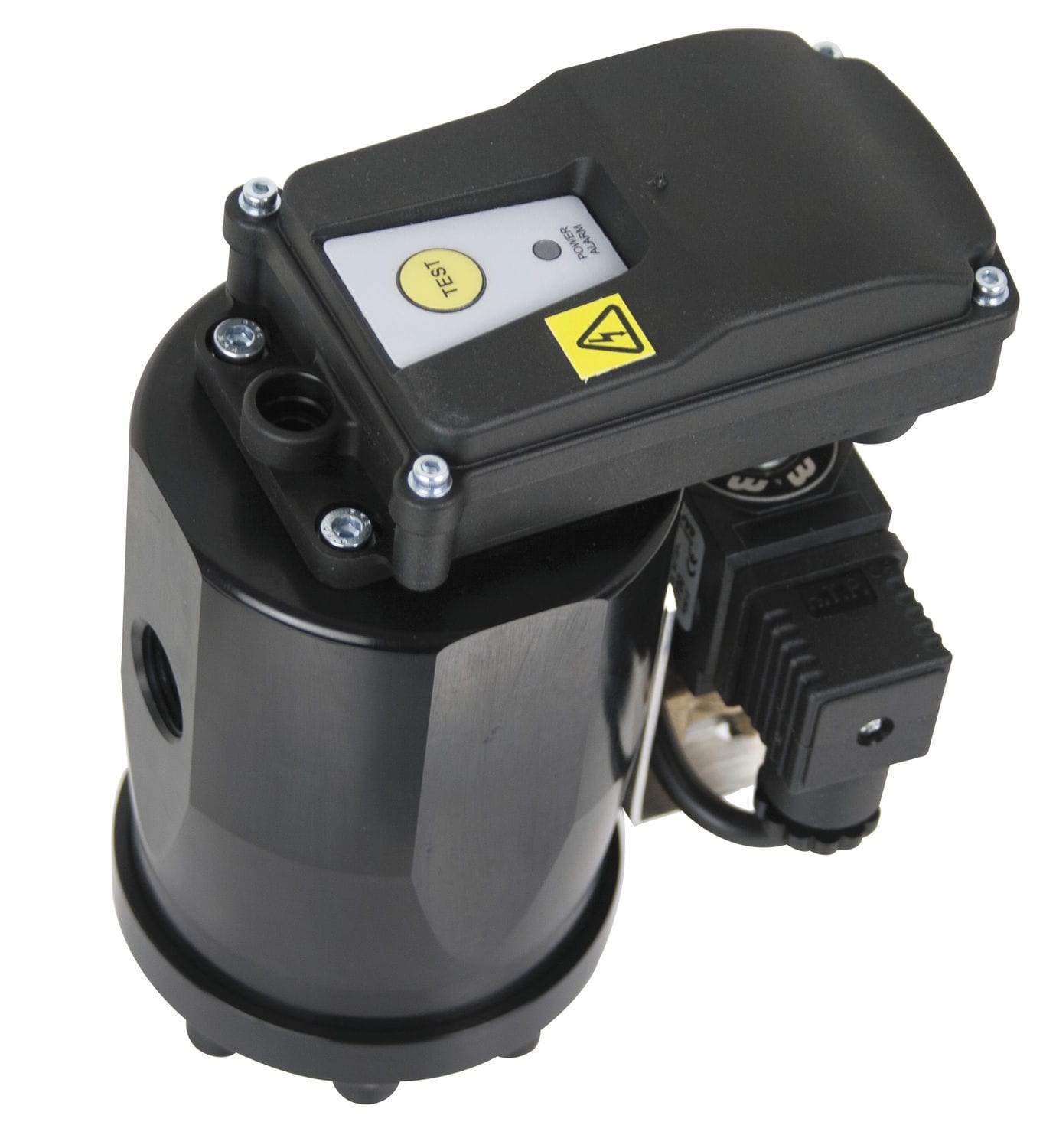

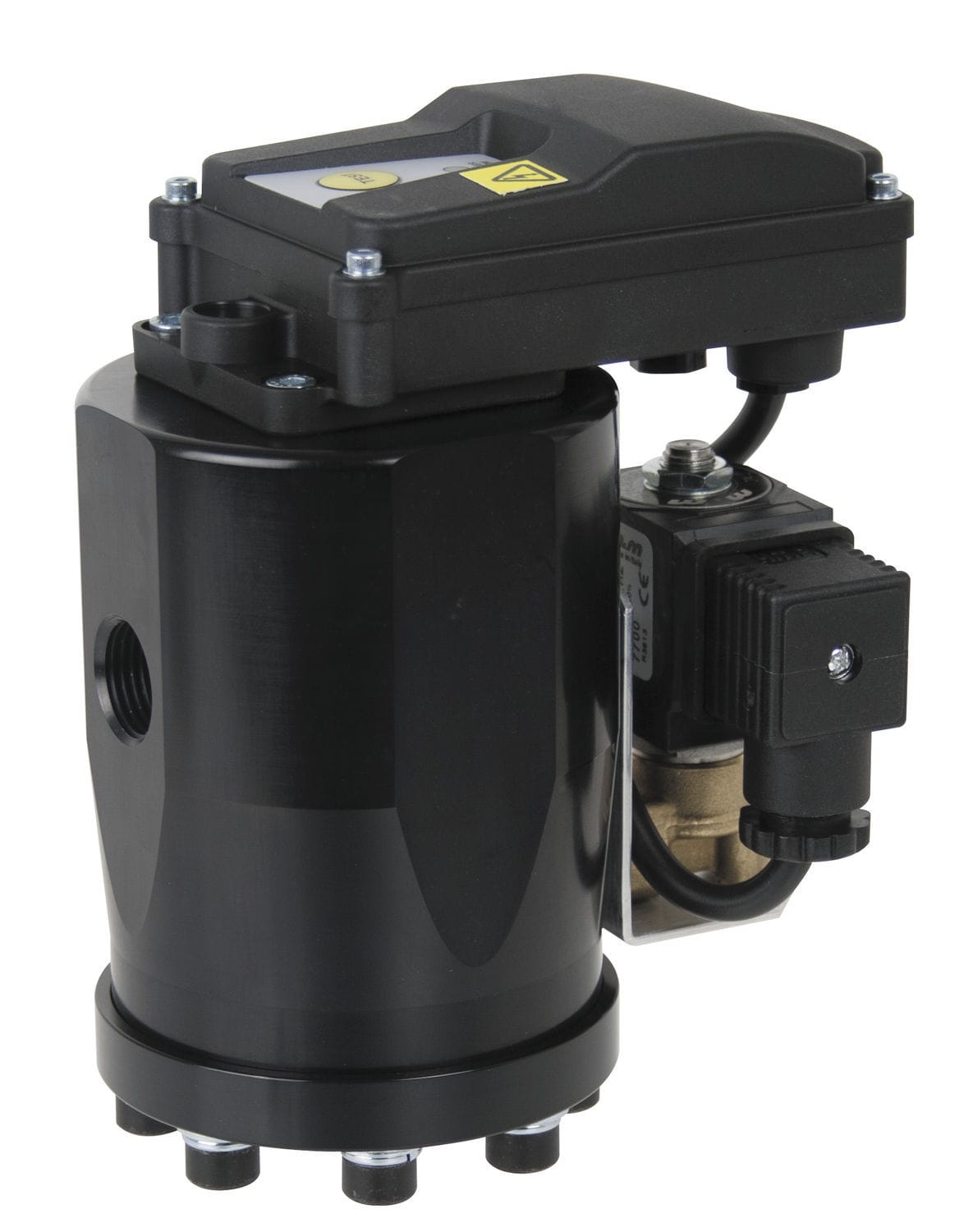

Condensate drain / automatic / electronic / high-pressure

EMD HP series drain have been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air?¹? system. The units can be installed as external drain on any application specified below. Condensate accumulates in the collecting reservoir and when the level is high enough condensate is being discharged from the system without any air losses. Fluid level is detected by precise capacitive level sensor. Special selfcleaning direct acting valve assures reliable operating. EMD HP series is also equipped with operation alarm (version A), led indicator, test button and internal strainer. Version with Service Network (version C) for diagnostics and parameter setting is also available. Working hours, valve operations and other operating parameters are stored in internal memory and can be read with Service Network reader.

Specifications

  • Medium: condensate
  • Operational mode: automatic
  • Type: electronic
  • Other characteristics: high-pressure
  • Operating pressure: 50 bar (725.19 psi)

Other items

In this category | In this category, (Omega Air D O O Ljubljana)
