Condensing Units

Intarcon

  • Semi-hermetic condensing unit / air-cooled / for outdoor use

MDF/ BDF series

Article: 00028167

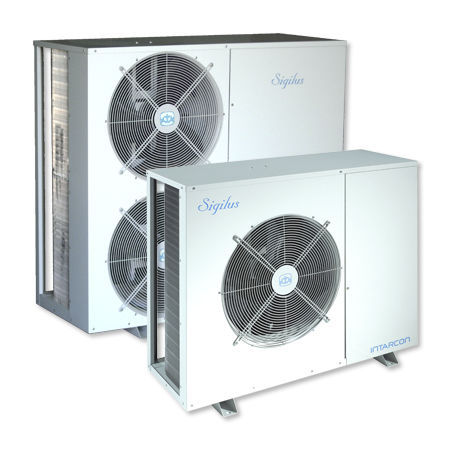

Semi-hermetic condensing unit / air-cooled / for outdoor use

Sigilus low-noise motocondensing unit is specially designed for outdoors installation to operate with medium-low temperature evaporating units. It features switchboard electronic control and therefore it only needs connection between condensing and evaporating units.

Low-noise construction and tropicalized design (up to 50º ambient temperature), to meet the most demanding installation needs.

MDF-N / BDF-N series: electronic version for positive temperature, from 1,0 to 10,7 kW (evaporation temp. -10ºC), and negative temperature from 0,7 to 7,8 kW (evaporating temp. -30ºC).
MDF-M / BDF-M : electromechanical version for positive temperature, from 1,0 to 10,7 kW (evaporation temp. -10ºC), and negative temperature from 0,7 to 7,8 kW (evaporating temp. -30ºC).
MDF-V / BDF-V: multi-service version for positive temperature, from 3,2 to 13,5 kW (evaporation temp. -10ºC), and negative temperature from 2,2 to 8,7 kW (evaporating temp. -30ºC).

Specifications

  • Compressor type: semi-hermetic
  • Cooling system: air-cooled
  • Location: for outdoor use
  • Power: Min.: 1000 W (3412.13 BTU/h)
