DN63 - DN200

Article: 00028739

Electric connector / circular / flange / M16

We only produce compressed air piping system network, and this product is one of the components.

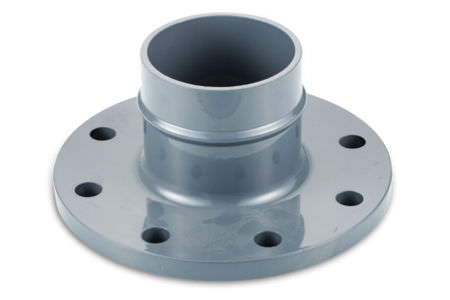

One piec of AIRPIPE Flange Connector is needed to connect the flange to the pipe.And we guarantee 10 year’s quality assurance and provide excellent services.
Technology Date
Suitable fluid: compressed air, vacuum, inert gas, water
The maximum working pressure at -20 ? to 70 ? (-30 ? to 80 ?), 13bar.
Vacuum: 0.13bar absolute pressure.
Seamless Extruded Aluminum tube (GB/T4337.1-2000).
Feature
The high performance of double ?O?sealing ring ensures excellent seal and no leakage
Fin guide design and the low friction inner surface eliminate the airflow restriction,reducing the pressure drop as much as possible
Full volume flow reduces the pressure drop efficiently
All is BSP thread

Specifications

  • Type: electric
  • Shape: circular
  • Connection type: flange
  • Size: M16
  • Material: aluminum
