Connectors D Subminiature

Conec Elektronische Bauelemente Gmbh

  • D-Sub connector / combined / crimp / high-voltage
  • D-Sub connector / combined / crimp / high-voltage

Article: 00029186

D-Sub connector / combined / crimp / high-voltage

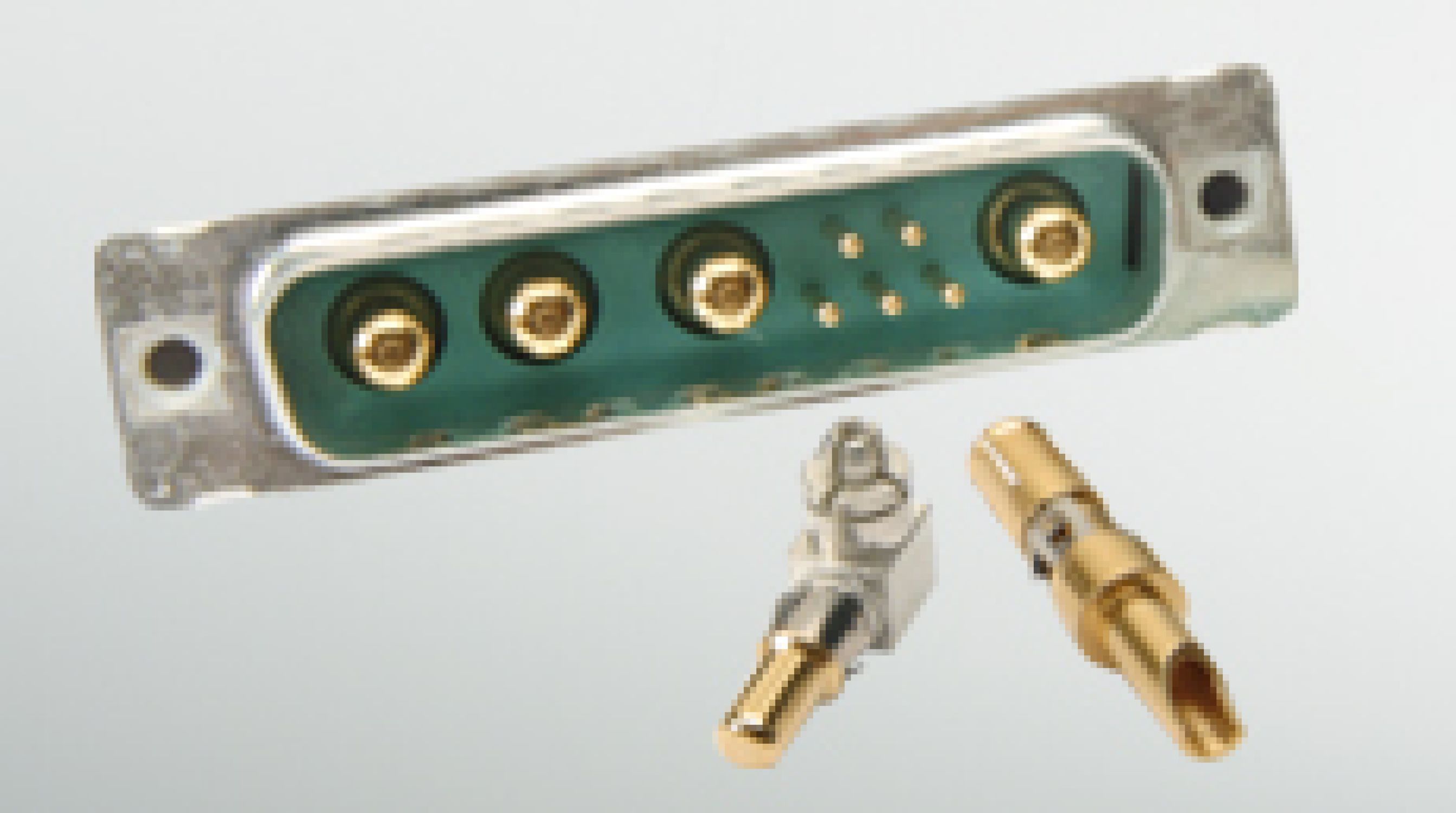

Combination D-SUB Plug connector 7W2
The Combination D-SUB connectors can be used in a wide variety of applications. Different combinations of contact styles like signal, high power, high voltage and coaxial contacts, are possible within one connector. The advantage of these connectors is, by combination of different contact styles within one connector, space and cost savings at the IO interface area could be reached. In general the connectors are supplied with signal contacts up to the crimp version. The high current, high voltage and coaxial contacts can be ordered separately or they can be factory assembled ordered.
Model article number: 3007W2PAM62A10X

Specifications

  • Type: D-Sub, combined
  • Connection type: crimp
  • Electrical characteristics: high-voltage, high-power
  • Material: steel, brass, stainless steel
  • Current: Max.: 40 A
