ARMADI LEGGIO LV

Article: 00030485

IP55 console / HMI / operator / control

LV DESK CABINETS
Lower base:
1,5 mm thick steel sheet monobloc structure with welded side panels, roof and base.
Internal plate:
2,0 mm thick galvanised steel sheet (Sendzimir);?adjustable depth.
Cable entry flange:
1,5 mm thick steel sheet; it consists in 2 parts; with cable-tie neoprene gasket.
Solid front door:
1,5 mm thick; polyurethane sealing gasket; pre-drilled internal elements for component installation; metal locking system with 3 mm double-comb tool insert; other configurations are available. 100° standard opening with reversible left hinges. Hinged door from W = 1200 mm.
Back panel:
1,5mm thick steel sheet; fixed with screws.
Intermediate shelf:
Welded monobloc structure; flat upper part, 12° tilt front part in 1,5 mm thick steel sheet; top-hinges door and opening position retainer; front locking system for 3 mm double-comb tool; other configurations are available.
Top plate:
70° tilt welded monobloc structure; 1,5 mm thick steel sheet; bottom-hinges door and opening position retainer;
pre-drilled internal elements for component installation; upper locking system for 3 mm double-comb tool; other configurations are available.
Back panel:
1,5mm thick steel sheet; fixed with screws.

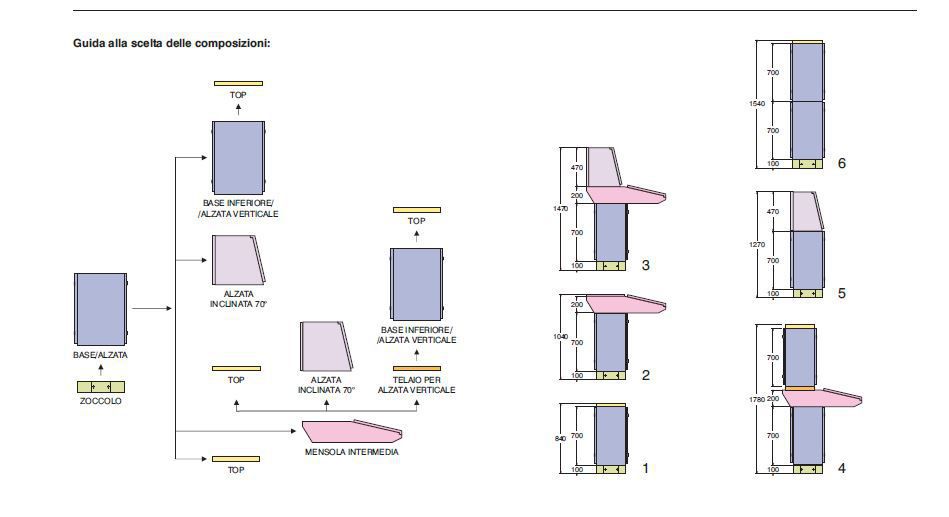

These three parts are connected and to be fixed together.
Painting:
Thermosetting powders.
Material:
1,5 mm thick carbon steel sheet.
Standard colours:
RAL7035 textured RAL7032 on request Plinth: RAL7009 textured

Specifications

  • Options: IP55, HMI, operator, control
  • Material: stainless steel, steel
