Current data loggers, voltage data loggers, energy data loggers

BeanAir GmbH

  • Current data-logger / programmable / wireless
  • Current data-logger / programmable / wireless

AN-mV

Article: 00033972

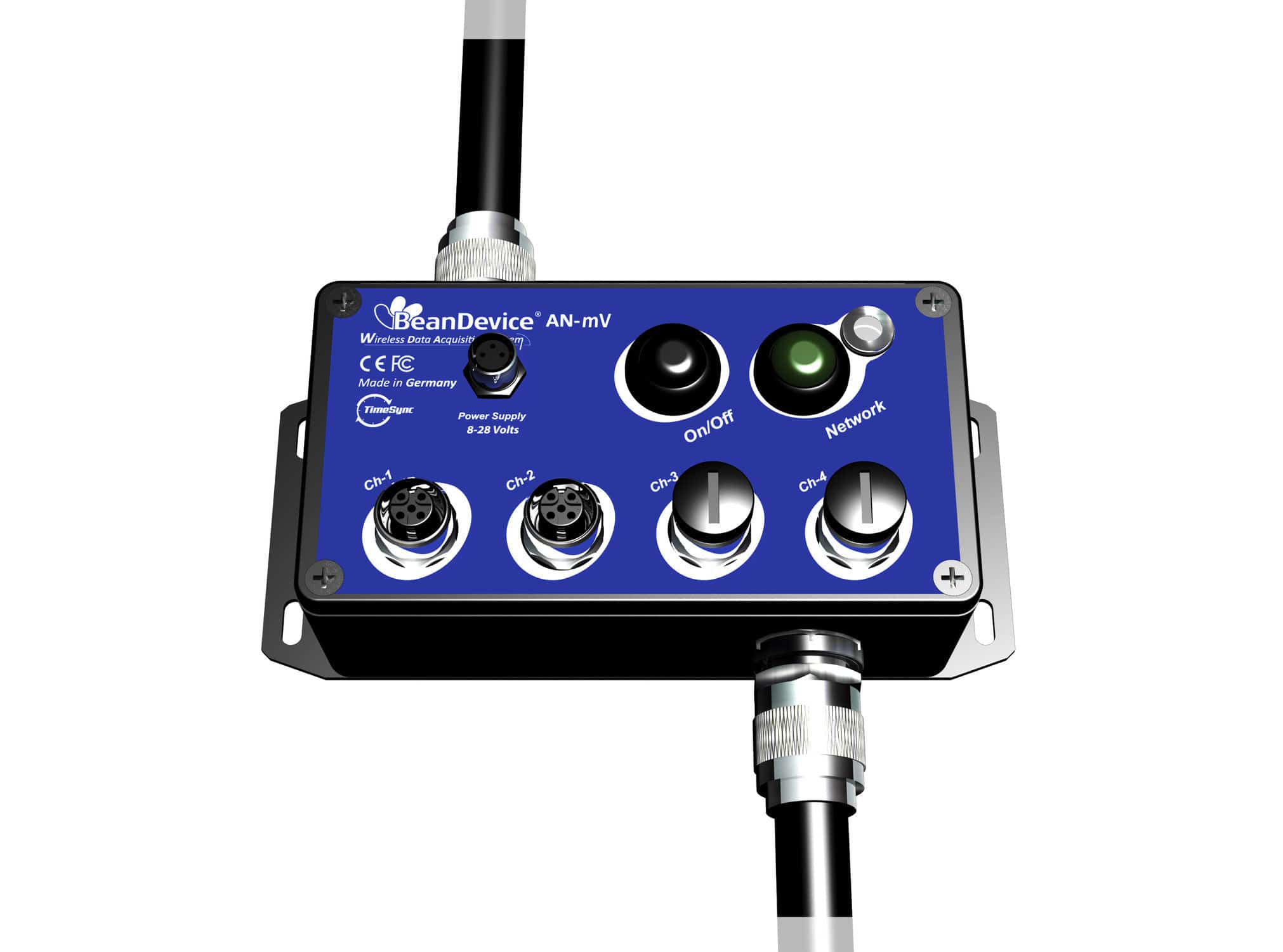

Current data-logger / programmable / wireless

Wireless Data logger with analog voltage inputs (±20mV)

The BeanDevice® AN-mV is a wireless data logger with analog voltage inputs (±20mV). Special care is taken in the analog signal conditioner design with an accuracy of ±0.4% (FS) and a dynamic range of 16-bits.
The sensor is directly powered by a high accuracy and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® (4.5 to 20V).
Characterized by a watertight (IP65) and small (146.05 mm x 65.5 mm x 33.5mm) aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 000 000 data acquisitions, as well as a maximum wireless range of 1 Kilometer (L.O.S.), this wireless device is well suited for all types of industrial applications.
This device comes with TimeSync function. It provides time-synchronization over the wireless sensor network and helps to enhance user experience on data correlation.
While the vast majority of wireless sensors show their limits in harsh industrial environment, the BeanDevice® AN-mV integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna diversity improves both the quality and reliability of a wireless link by 30%.
The wide range of industrial protocols available on our wireless device (ModBus TCP/RTU/ASCII and OPC DA) enable an easy integration into your IT environment.

Specifications

  • Measured physical value: current
  • Type: programmable
  • Connector type: wireless
