SMW RTTB

Article: 00035566

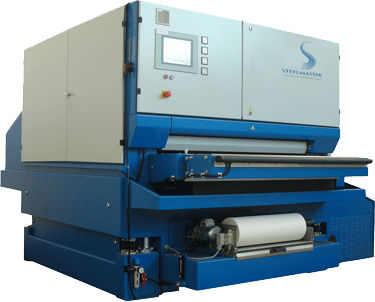

Belt grinding machine / deburring / CNC / for metal

Base machine:

Heavy machine frame configuration with a choice of multiple grinding and/or deburring heads
Constant pass line (1000 mm) through adjustment of upper machine frame with 4 trapezium spindles
Accuracy of the height adjustment 0,1 mm (optional: 0,01 mm adjustment)
Rubberized contact drum on drive motor for conveyor belt
Oil resistant rubberized pinch rollers
Jog switch for head adjustment
Spray nozzles in front and behind every head
Integrated coolant filtration unit made out of stainless steel. (easy to slide out for cleaning)
Integrated coolant tank in machine frame
Safety switch on: machine in-feed, doors, deburring heads
Emergency safety switches on front and rear side of the machine
All electrical switches conform EU-Norm and Machine conforms in every aspect of the EG machine
regulations (CE)
TE 14/S7 terminal with capacity for 1024 programs

Specifications

  • Type: belt
  • Associated function: deburring
  • Control type: CNC
  • Applications: for metal
  • Other characteristics: automatic
