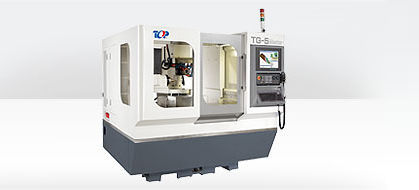

• CNC grinding machine / cutting tool

TG-5

Article: 00035454

CNC grinding machine / cutting tool

General Capacity
Max. workpiece length 200mm
Max. workpiece diameter Ø200mm
Grinding Spindle and Motor
Spindle speed 1000~9000rpm
Spindle motor 7.5kw(10HP)/11kw(15HP)
Spindle taper BT-50
Resolution 0.001?
Axis travel
X axis 350 mm
Y axis 220 mm
Z axis 170 mm
A axis (-10?~190?)
C axis 0~360?
Rapid traverse X,Y,Z 6 m/min

Specifications

  • Control type: CNC
  • Applications: cutting tool
  • X travel: 350 mm
  • Y travel: 220 mm
  • Z travel: 170 mm
  • Spindle speed: Min.: 1000 rpm (6283.19 rad.min-1)
