KGV151

Article: 00035321

Flat grinding machine / grooving / CNC / 4-axis

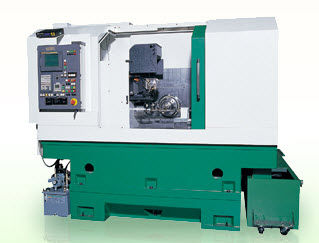

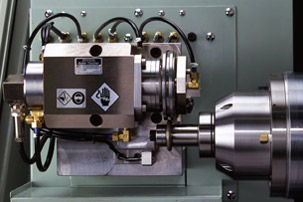

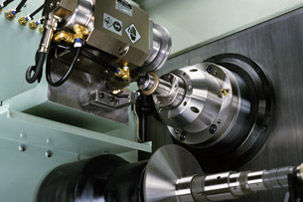

The KGV151 is a 4 axis CNC shaft groove grinding machine. The grinding spindle uses electroplated CBN grinding wheels or Vitrified CBN grinding wheels. The spindle has a maximum 30,000 rpm. The shaft part with a tight radius can be grounded easily. To have a high rigidity and accuracy, the machine consists of a large roller bearings.

The X-axis has a closed-loop system which makes a highly accurate positioning. The guideways used on the Z-axis eliminates the waviness happening when linear guideways are used.

Specifications

  • Type: flat
  • Associated function: grooving
  • Control type: CNC
  • Number of axes: 4-axis
  • Performance: high-accuracy
  • Spindle speed: Min.: 0 rpm (0 rad.min-1)
