Cylindrical Grinding Machines

600 Group

  • Flat grinding machine / manual / precision

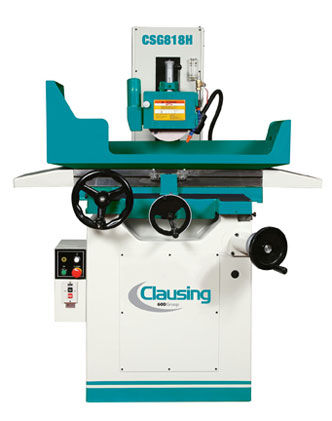

618, 818 series

Article: 00035307

Flat grinding machine / manual / precision

Standard Features

High Precision Cartridge Spindle High precision cartridge type spindle is supported by 2 preloaded precision angular contact ball bearings & one NN type roller bearing and driven by V3 class motor that allows highly accurate grinding performance. (CSG-618/818 series driven by 2HP motor).
Anti-wear Guide Ways The saddle rests on precision hand-scraped double V ways & the table rests on precision hand-scraped V & flat ways which are coated with TURCITE-B. These guide ways are equipped with auto lubrication to resist wear for lasting accuracy & dampening. CSG-618/818 hand feed grinders have ballways between table and saddle.
Rigid Cast Construction Machines are constructed of high grade cast iron with heavy walls & reinforced ribs to provide excellent rigidity and dampening.
Enlarged Column & Base Enlarged column & base create high stability & rigidity. The maximum height is 18" (460mm) from table surface to the center line of spindle.
Auto Lube System Automatic lubrication system is supplied as standard to ensure sufficient lubrication to lead-screws & guideways for greater longevity.
Timing Belt Table Drive Handfeed models (CSG-618/818 only) use a timing belt for the table drive which has enclosed high tensile steel cores that ensure more smooth table movement and longevity. The table handwheel can be indexed to 9 different positions, without backlash, for more convenient operation.
Longitudinal & Cross Drive For all models, except CSG-618 & 818 handfeed, the longitudinal movement is driven by a hydraulic system; 0n 2A and 3A series, the cross movement is driven by motor for more accurate increment feeding.

Specifications

  • Type: flat
  • Control type: manual
  • Performance: precision
  • Spindle speed: 3450 rpm (21676.99 rad.min-1)
  • Distance between centers: Min.: 0 mm
