• Flat grinding machine / numerical control / 2-axis / hydraulic

306AHR

Article: 00035201

Flat grinding machine / numerical control / 2-axis / hydraulic

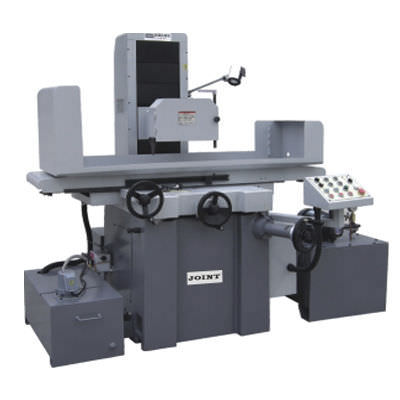

3060AHR Surface Grinding Machine

Features:

1.Taiwan grinding head.
2.CE certificate.
3.Mehanite cast.
4.OEM manufacturer.

5.Twice scraped slide way,which could assure the accuracy of the machine.

6.High quality electric components.

7.Radius tolerance of spindle
Specification:Grinding machine 3060AHR

Model 3060AHR
Table size 600*300mm
Table travel(Longitudinal) 640mm
Table travel(Cross ward) 320mm
Max.Distance from spindle center to table 475mm
Spindle (Rotation speed) 1450rpm
Spindle (Rated power) 5HP
Auto feed of vertical handwheel (1Rev.) 2
Auto feed of vertical handwheel (1Div.) 0.01
Grinding wheel size DIA355*(20-45)*127mm
Magnet chuck size 150*350mm
Dimension 2040*1830*2090mm
Net weight 2100kg



Accessories:



1.Standard accessories:



Coolant system or dust clean

Working light

Tool and toolbox

Operation manual



2.Optional accessories:



5UM DRO

1UM DRO

Magnet chuck

Specifications

  • Type: flat
  • Control type: numerical control
  • Number of axes: 2-axis
  • Other characteristics: hydraulic
  • X travel: 660 mm
  • Y travel: 340 mm
  • Spindle speed: 1450 rpm (9110.62 rad.min-1)
  • Distance between centers: Min.: 0 mm
