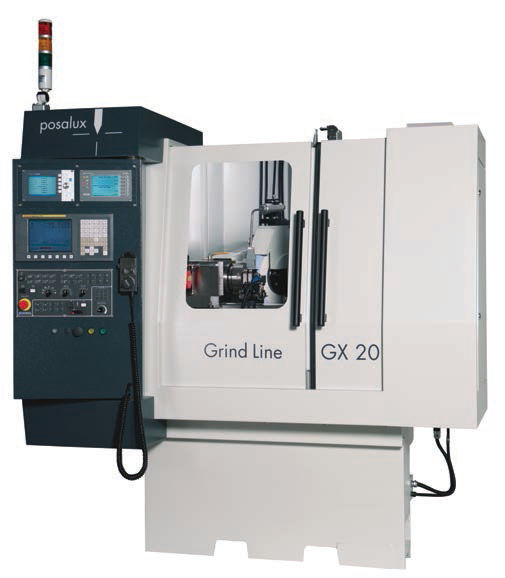

GX20

Article: 00035152

High-precision grinding machine / external cylindrical / deburring / CNC

Designed for mass production:
Compact machine design for grinding high precision medium and small workpieces
Ideal accessibility for set up
Maintenance friendly design of pneumatic, hydraulic and coolant units
Fixation points for integrated handling systems
Handling adjusted hoodenclosure

Automation:
Several standard Handlingsystems available
Ideal design for cost efficient production grinding
Fully automatic matchgrinding
Several additional operations as post process gauging, cleaning and deburring are available

Technical Data:
Distance between centers approx. 200mm
Grindingwheel diameter 400 x 127mm
Grindingwheel width straight head max. 80mm, angle head max. 50mm
Wheelspeed standard 45m/s
Center height 110mm
Traveldistance X-axis max. 250mm
Traveldistance Z-axis max. 400mm

Specifications

  • Type: external cylindrical
  • Associated function: deburring
  • Control type: CNC
  • Structure: compact
  • Performance: high-precision
  • X travel: 250 µm
  • Z travel: 400 µm
  • Distance between centers: 200 mm
