Stepper motor / DC / two-phase

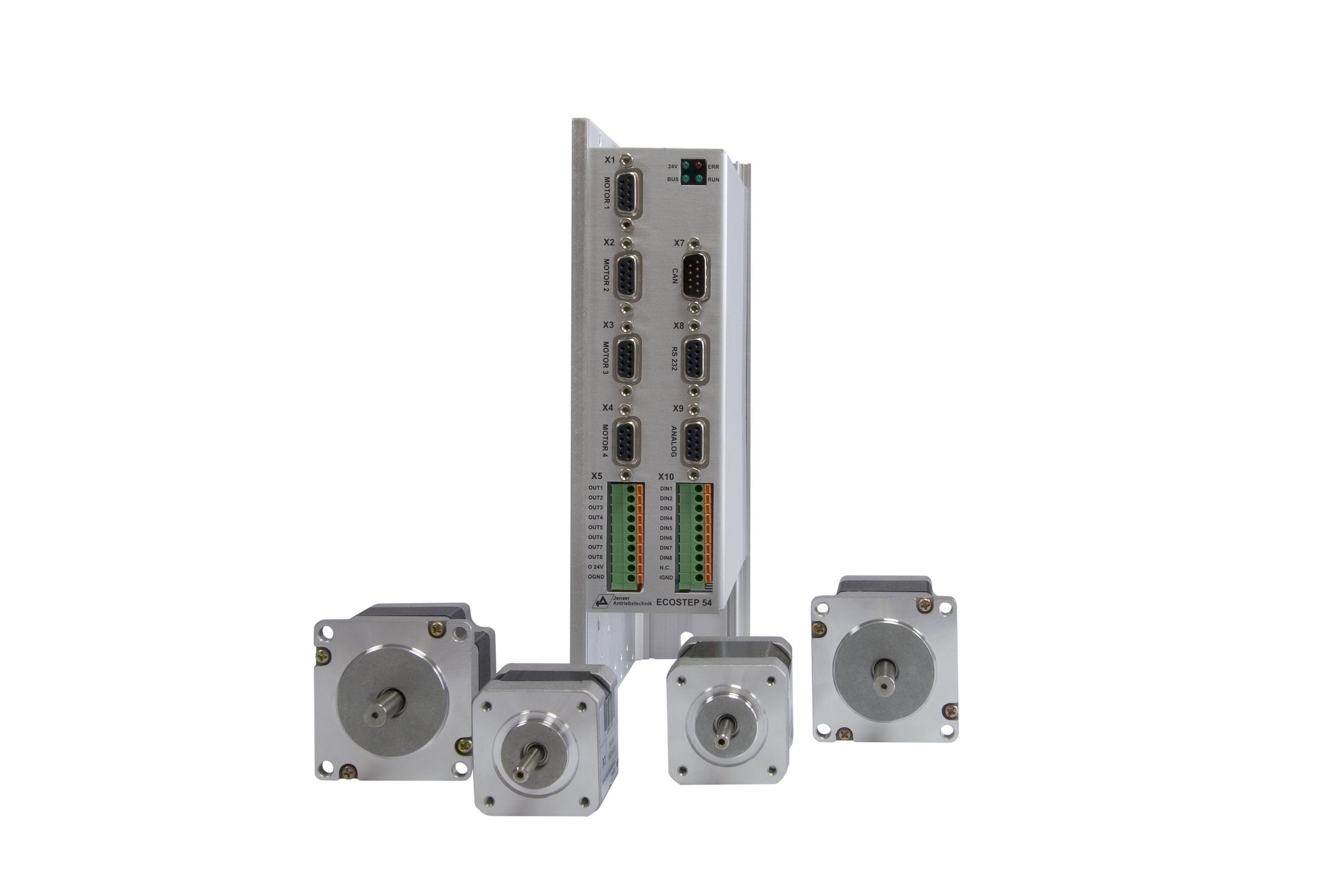

ECOSTEP® 54 is a four axis motor amplifier for two-phase DC stepper motors. Microstep control at 12.800 microsteps with step angle of 1.8° gives a high positioning accuracy and ensures smooth running of the motor. Supply voltage is between 24 to 60 V. It has a torque range between 0.24 to 1.6 Nm. There are eight isolated digital inputs and outputs. Commutation switches from sine to rectangular based on speed. Parameterization is via CANopen or RS232.

Specifications

  • Type: stepper, DC
  • Technology: two-phase
  • Power: 400 W (0.54 hp)
