DIA-COME series

Article: 00037041

Interior comparator / exterior

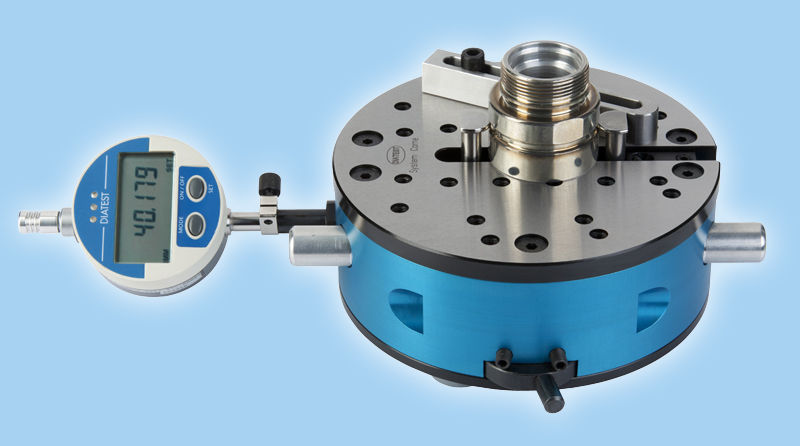

Flexible und sturdy measuring tables for measurement of I.D. and O.D.

DIA-COME measuring tables are offered in different sizes, layouts and measuring ranges. They are often used close to the production machine, e. g. for measurement of samples.

DIA-COME C2 measuring tables are available in 3 sizes. They have a fixed and a moving measuring contact. Measuring range of the moving contact is 20 mm. The C2 tables cover different measuring ranges:

I.D. from 30 ? 275 mm
O.D. from 0 ? 245 mm
Internal gear gauge Mi = 70 ? 275 mm
External gear gauge Ma = 0 ? 245 mm


DIA-COME C3 measuring tables are available in 4 sizes. They have two fixed and one moving measuring contact. Measuring range of the moving contact is 20 mm. The C3 tables cover different measuring ranges:

I.D. from 35 ? 450 mm
O.D. from 0 ? 420 mm
In order not to distort or damage the work piece the measuring force can be continuously adjusted. Measuring accuracy is ± 2 ?m.

Specifications

  • Options: interior, exterior
