Dispensing Pumps

Topsflo Industry And Technology Co

  • Self-priming pump / diaphragm / sampling / for fluids

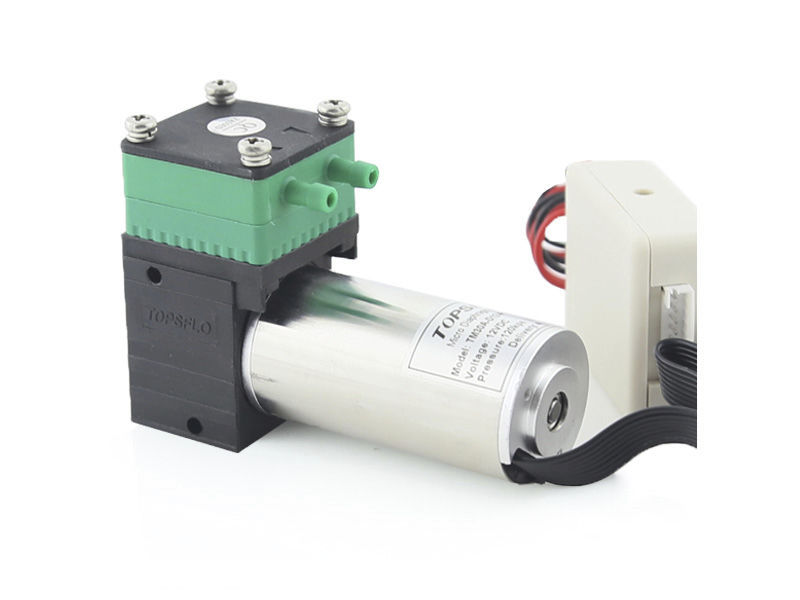

TM30A-D

Article: 00037893

Self-priming pump / diaphragm / sampling / for fluids

Specification:
Motor Type: Brushless DC motor
Max flow rate: 4.5L/min
Max pressure: 120Kpa, Max vacuum: 70Kpa
Voltage: 6V/12V /24V
Ideal Life Time: 15000 Hours Working Mode: Continuous or Interrupt

Overview:
TOPSFLO micro diaphragm pumps and compressors are based on a simple principal,the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point, this motion is then transferred to a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action.

Feature:
1.Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
2.Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
3.Lasts Reliably Longer
4.Uncontaminated flow
no contamination of the media due to oil-free operation
5.Little vibration
6.High level of gas tightness
7.Extreme chemical resistance
8.Optimal solution for your application

Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors

Specifications

  • Priming: self-priming
  • Type: diaphragm
  • Applications: sampling
  • Media: for fluids
  • Operation: with brushless DC motor
  • Flow rate: Min.: 0 l/min (0 us gal/min)
  • Pressure: Min.: 70000 Pa (10.15 psi)
