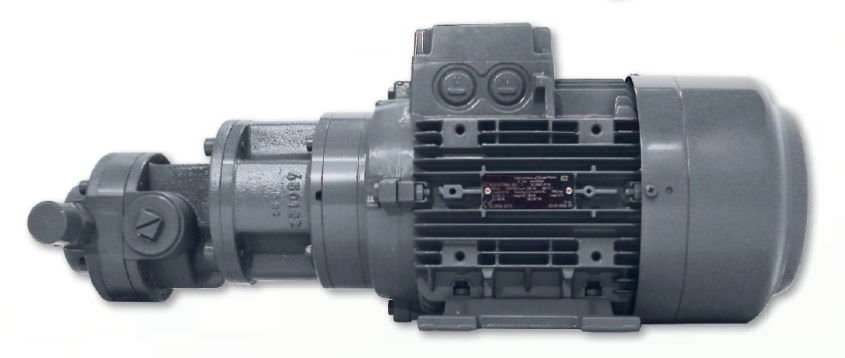

• Self-priming pump / external-gear / diesel fuel / rugged

VISCOSTAR

Article: 00037940

Self-priming pump / external-gear / diesel fuel / rugged

consistent flow volume
max. working pressure 30 bar
max. flow rate 70 litres/min
suction power up to 10 000 mPAS
media temperature from -40°C up to 160°C
range of viscosity 2 - 10.000 mm²/sec.
max. dry-run time up to about 30 seconds
Versatile Applications:
low to high viscous clean fluids
well lubricating fluids
light and heavy oils
(for example emulsions, diesel fuel, lubrication-, thermal-, hydraulic- or vegetable oil)
Materials in contact with the fluid - for long life durability body and cover are made of cast iron GG25, the shaft and gear-wheels are made of hardened stainless steel.

Specifications

  • Priming: self-priming
  • Type: external-gear
  • Media: diesel fuel
  • Other characteristics: rugged
