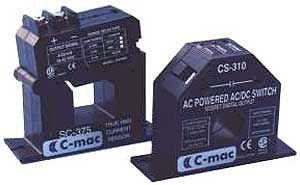

Instrument transformer / openable / through-hole / current

1. Current switches.
These units are used to give a signal, if the AC current exceeds a preselected setpoint.
The setpoint is adjusted on a potentiometer on the transformer.
2. Current converters.
These units converts the primary AC current to a standard 4-20 mA DC output current.

Series CS: Solid core, primary hole = Ø19 mm
Series SC: Split core, primary hole = 19 x 24 mm

Current switches, output variants:
DC switch: max load 30 VDC - 150 mA
AC/DC switch: max load 30 VAC/40 VDC - 500 mA
AC switch: max load 250 VAC - 1 A

Current converters, electrical data:
Output signal: 4-20 mA, loop powered
External supply: 10-42 VDC

Specifications

  • Type: instrument
  • Configuration: openable
  • Mounting: through-hole
  • Electrical characteristics: current
