  • Power transformer / laminated / for printed circuit boards / single-phase

5 - 120 V, 0.5 - 24 VA | 160 - 161 series

Article: 00038749

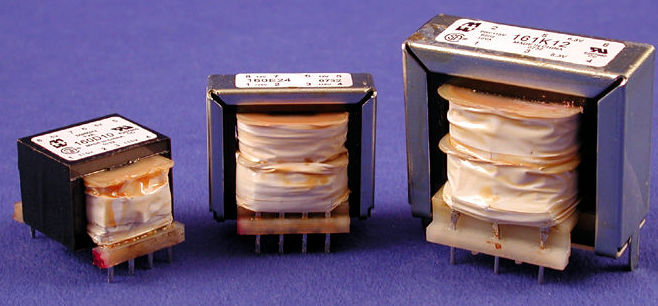

Power transformer / laminated / for printed circuit boards / single-phase

L.V. - P.C. Board Mount - Vertical

20 output voltages to choose from (5 - 120VAC R.M.S.)
Six VA size models available from - .5 to 24 VA
Vertical mount, split bobbin design.
Dual winding secondaries, non-concentrically wound
Low primary to secondary coupling - no electrostatic shield required.
Choice of economical single primary 115V - 60 Hz only (161 series) or the universal dual primary 115/230V - 50/60 Hz (160 series).
High insulation - Hipot of 2,000V RMS.
Class B insulation - 130 degrees C.
CSA certified and UL recognized.

Specifications

  • Type: power
  • Configuration: laminated
  • Mounting: for printed circuit boards
  • Electrical characteristics: single-phase
