AL series

Article: 00039701

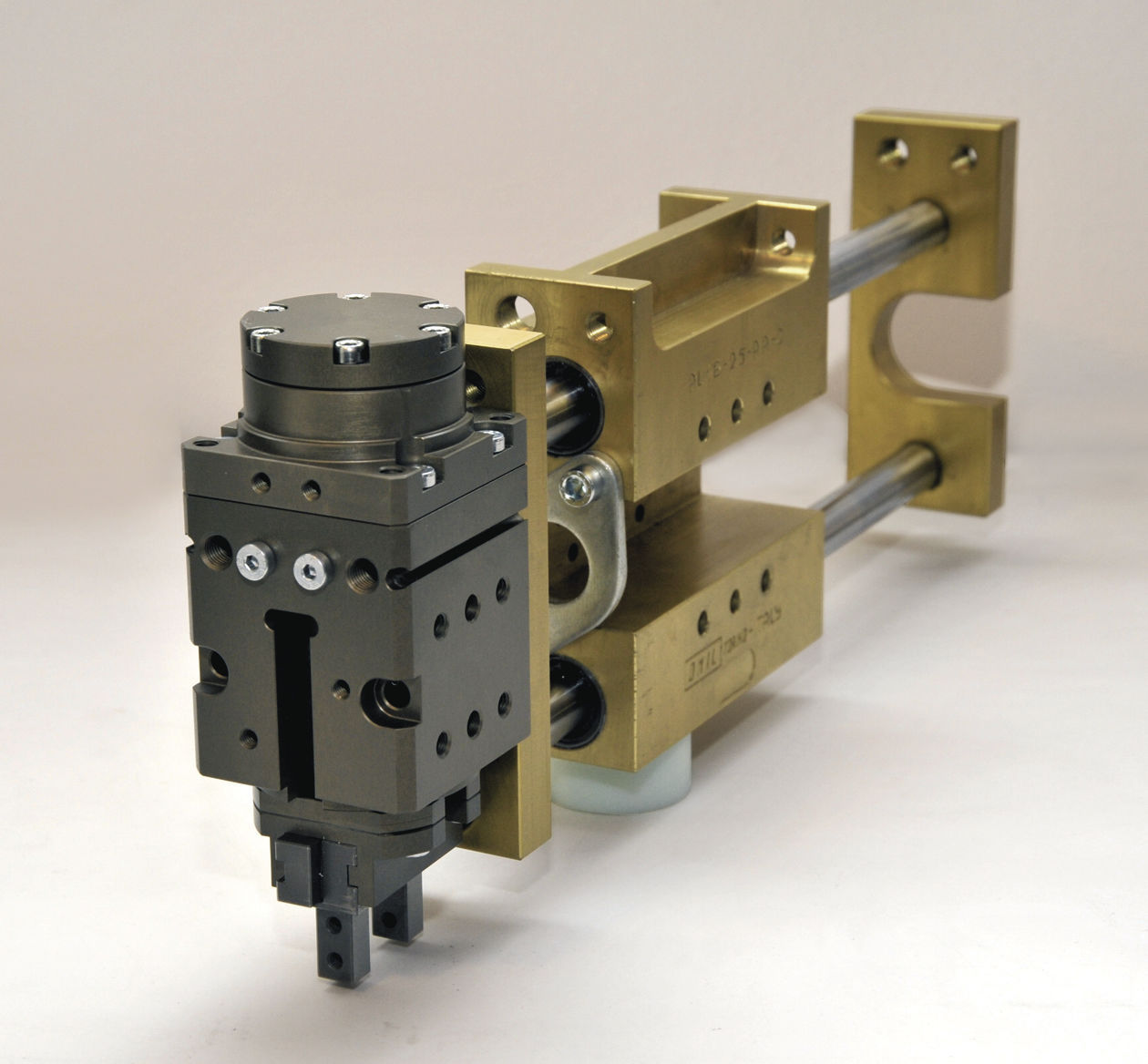

Linear actuator / pneumatic / double-acting / steel

- Range of operating pressure: 2...8 bar
- Repeatability accuracy 0.05 mm with adjustable stroke
- Operating temperature from 5°C to 60°C
- Operating system: cylinder ISO
- Sliding : linear bearing
- Damping : shock absorbers
- Adjustable end position
- Adjustable stroke
- Stroke from 25 to 500mm
- Housing material: high tensile hard-coated alluminium alloy
- Material of functional parts :treated and ground steel
- Actution: filtered compressed air
- Rating IP 54

Specifications

  • Movement: linear
  • Type: pneumatic
  • Configuration: double-acting
  • Material: steel
  • Other characteristics: cylinder ISO, with guide, compact
  • Stroke: Min.: 25 mm
  • Force: Min.: 104 N
