CF2.5 Compact

Article: 00041009

Rotary drilling rig / piling / hydraulic / crawler

TORQUE: 27 kNm
ENGINE POWER: 42 kW
MAX DEPTH: 15 m
MAX DIAMETER: 800 mm
TOTAL WEIGHT : 7 t

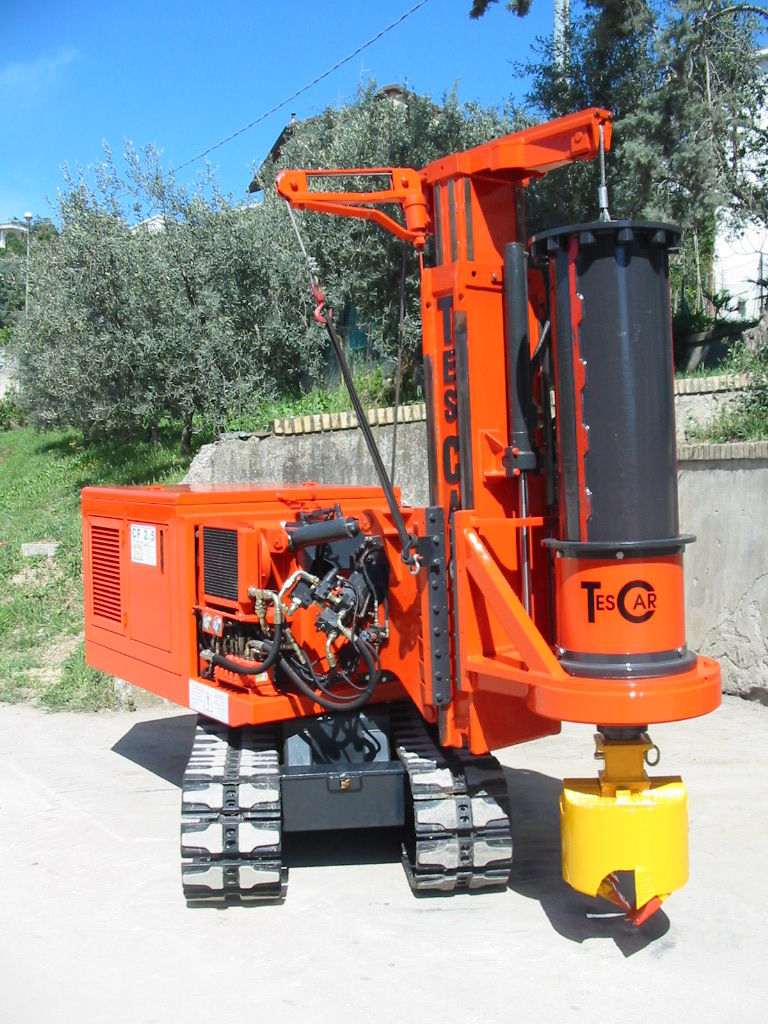

Hydraulic piling rig CF2.5 COMPACT
The "SMALL WONDER" (as it's called by our American customers) is a very compact and versatile machine, provided with radio remote controller to be operated at a safety distance in case of particularly dangerous working conditions. The power pack is indipendent and removable to be placed outside buildings without a suitable air flow to guarantee the safety of the operator. The CF2.5 COMPACT is also provided with a special "counter-slide" device to lower the mast group to achieve the lowest headroom working position. It's also equipped with a 2 sections telescopic mast to work with a 15 or 18 m locking kelly bar, with the possibility to close down the 2 telescopic sections to reduce the total height and work in low headroom position even under 3000 m with a special "short" kelly bar for 15 m depth. With a max width of 1500 mm, the CF2.5 can move in the narrowest places and restricted areas. The undercarriage is provided with rubber crawlers to work over fragile or luxury floors wiothout problem.

Specifications

  • Drilling unit: rotary
  • Drilling type: piling
  • Operation: hydraulic
  • Portability: crawler
  • Drilling diameter: Min.: 0 mm
  • Drilling depth: Min.: 0 m (0' 0")
