N3301A

Article: 00046235

Programmable electronic load / DC

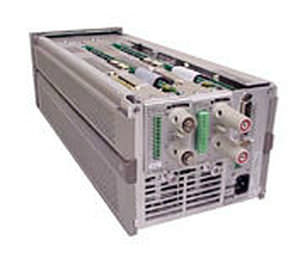

The N3301A 600 Watt DC Electronic Load Mainframe by Agilent is a half rack width mainframe with 2 slots which accepts combinations of N330x user installable load modules ranging from 150 Watts to 600 Watts for future recognition and easy system configuration. Holding up to two modules among the N3302A, N3303A, N3304A or N3307A, the N3301A can also hold any module from the N3305A and the N3306A modules, and allowing 600 Watts of maximum power. Since the testing of multiple output dc power supplies and dc-dc converters can be very time consuming if every output must be tested sequentially, the measurement is made by a MUX making use of one DMM which, using the integrated measurement capabilities of the N3300A electronic loads, can measure all the outputs simultaneously. Hence one single GPIB address is all the one needs for comprehensive control and read back of all the load modules in a single mainframe of the N3310A.

Specifications

  • Options: programmable, DC
