• Temperature data-logger / multi-channel / USB / with screen

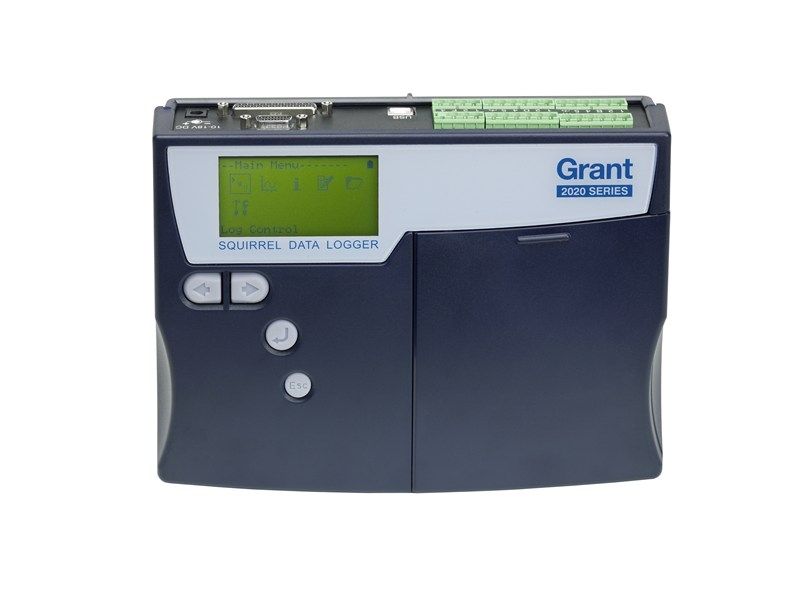

Squirrel SQ2020 Series

Article: 00048095

Temperature data-logger / multi-channel / USB / with screen

The Squirrel 2020 series offers high performance universal data loggers packed with powerful features to provide great flexibility to handle a wide range of routine and demanding applications.

Hand held and lightweight, the Squirrel 2020 models are easy, fast and convenient to use - either as stand-alone loggers or as PC-linked data acquisition systems in industrial and scientific research and quality assurance applications.

Twin processors, multiple 24-bit analogue to digital converters, up to 16 universal channels and a choice of communications methods ensure that the Squirrel 2020 series provides state of the art data logging and communication capability for sophisticated applications needs.

Fully configurable via the integrated keypad
8 true differential or 16 single ended universal analogue inputs for voltage, current or resistance
Analogue inputs can be used with thermistors, thermocouples, 2,3 or 4 wire RTD temperature sensors and 4-20mA signals
Logging rates of up to 100Hz on up to 2 channels (2F8 only)
Ethernet (2F8 only), USB and RS232 communication ports
Large non-volatile internal memory storage for up to 14 million readings
Removable MMC / SD card

Specifications

  • Measured physical value: temperature
  • Type: multi-channel
  • Connector type: USB
  • Other characteristics: with screen
