• Piston pump / fire / fuel oil

SP 8

Article: 00051315

Piston pump / fire / fuel oil

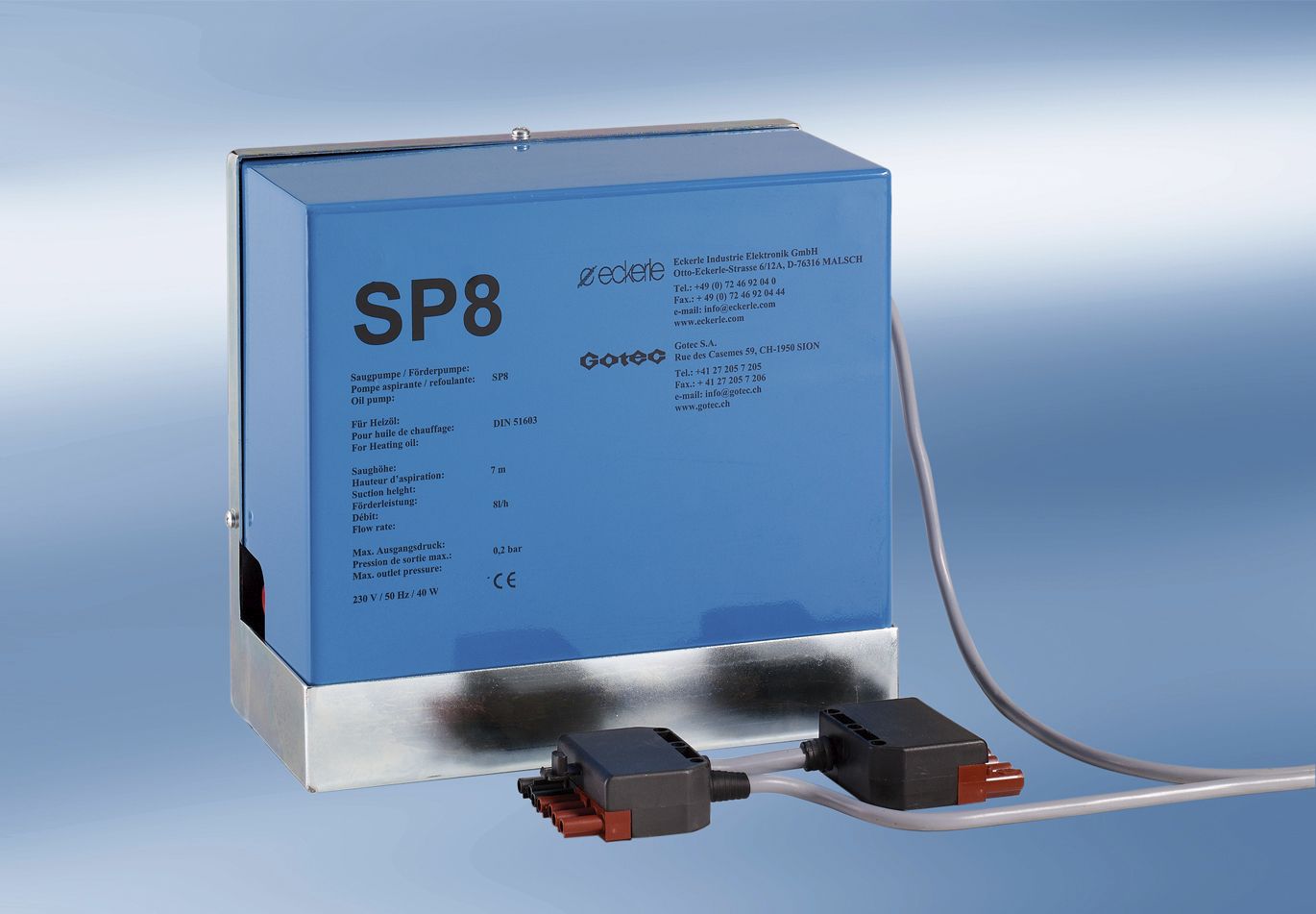

The SP 8 is a suction pump aggregate which is designed for use with oil-fired fan burners that work in a closed circuit. The system has an electromagnetic piston pump, safety device, suction filter, and check valve. Its hydraulic connectors have a 10x1 mm suction line and a burner-sided 3/8" male thread.

The model is equipped with a built-in safety oil pan with an emergency shut-off function. It can also work in a closed circuit with a maximum current of 80 kW at a 7 m suction height. The model may be easily installed though a 7-pin-plug for the burners.

The SP 8 is built for use with one-line systems and is suitable for self-contained central heating systems.

Specifications

  • Type: piston
  • Applications: fire
  • Media: fuel oil
