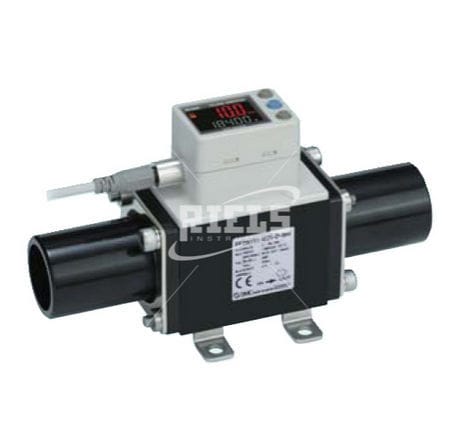

• Vortex flow switch / for liquids / in-line / digital

PF3W PVC

Article: 00053240

Vortex flow switch / for liquids / in-line / digital

The digital flow switch PF3W PVC is a vortex flowmeter, suitable for deionized water and chemicals.
The setting and displaying the flow rate is read directly on the digital display.
Available in two versions for different applications, integrated display and wireless remote display.

When an elongated object (vortex generator) is located in the flow, are generated reverse swirl in the downstream side.
These vortices are stable under certain conditions and their frequency is proportional to the flow velocity, in accordance with the following formula: f = K * v
f = frequency; v = speed; k = proportional constant (determined according to the size of the vortex generator, to form etc..).
Therefore, the flow rate can be measured by detecting this frequency.

The swiveling display provides the following functions:

Main Reading (two-color LED): it shows the flow, the state of the setting mode and error code.
Secondary reading: it shows the accumulated flow, the setting value, the maximum / minimum value, the temperature of the fluid and the name of the line.
In setting mode, which displays the set.
Display output (LED): it shows the output status of OUT1 and OUT2. When ON: LED lights up orange.
Display units: it displays the selected unit.

Specifications

  • Technology: vortex
  • Fluid: for liquids
  • Other characteristics: in-line, digital
