Implement Industry Ideas
  • Electric swivel folding machine / sheet metal / CNC

K25 series

Article: 00053734

Electric swivel folding machine / sheet metal / CNC

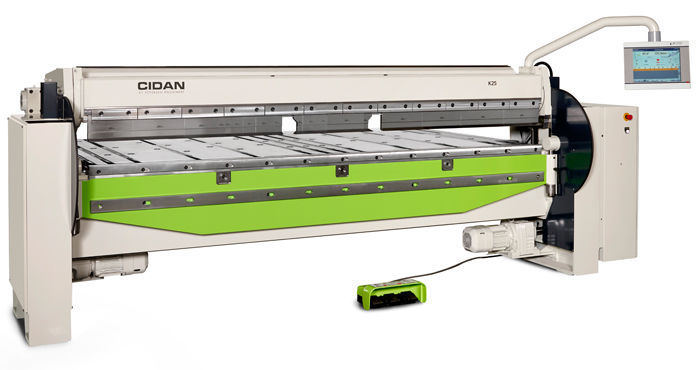

CIDAN K25 is a versatile and strong folding machine. The cast iron side frames, twin drive of both folding beam and upper beam, and the eccentric clamping, all give you a trouble-free operation at a low maintenance cost. The optional Combi beam provides the ability to change tools in seconds. The user-friendly control systems EasyLink or ProLink S allows easy programming and use regardless if the operator is experienced or not. Equip your K25 with ProLink S and you will get a much faster machine thanks to the more powerful motor and higher gearing. With the CIDAN K25, you'll get a reliable and efficient work horse, day after day, year after year.

An eccentric drive that minimizes wear and gives the best possible opening and closing speeds drives the clamping beam. This also gives the best possible clamping pressure of 13 tons (14US).
The clamping beam opens as the folding beam returns so they are positioned for the next step simultaneously to save operative time.

Sturdy construction

Built for demanding conditions, 100% duty cycle

Same opening height regardless of tooling (Combi beam)

Versatile and flexible

Variety of options available for added flexibility

Generous space around the tools for increased flexibility

Specifications

  • Operation: electric
  • Material: sheet metal
  • Other characteristics: CNC
  • Bending length: Min.: 2550 mm
