Foot switches

Linemaster

  • Control foot switch / electric / single / double

511 series

Article: 00053796

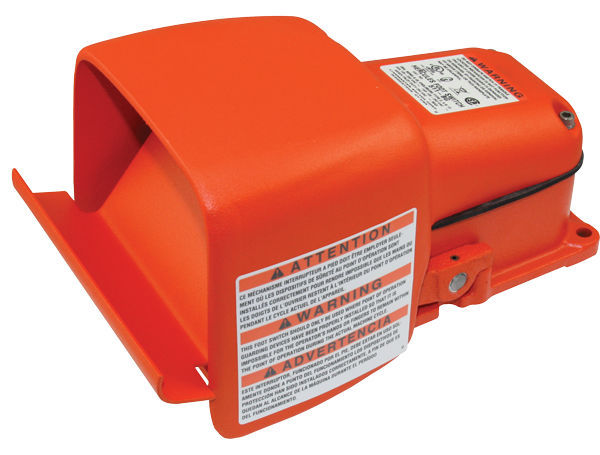

Control foot switch / electric / single / double

Materials of Construction:
-Treadle and housing constructed from cast iron for strength and durability
-Protected by a strong cast aluminum shield
-Special AirVal models available to the O.E.M. on special order
-Painted Alert Orange
-Single 3/4"-14 N.P.T. threaded conduit entry is standard

Features & Benefits:
-Heavy duty foot switch features an anti-trip treadle mechanism that helps prevent accidental actuation through unintentional stepping on foot treadle
-Switch operation requires that the latch trip lever be released prior to depressing the foot treadle as in-line foot pressure is applied to the latch trip lever located at the rear of the foot treadle
-Smooth trip lever release and treadle depression motion results in good rate of operation
-Dual treadle return springs and latching mechanism
-Anti-skid rubber feet and 3 holes for rigid mounting to floor or equipment
-All Models have a neoprene Cover Gasket plus O-Rings on the Actuating shaft and separate ground screw

Specifications

  • Function: control
  • Technology: electric
  • Type: single, double
  • Protection level: ultra heavy-duty
  • Other characteristics: anti-trip
