Forestry harvesters, Skidders, Forwarders, ...

Welte Fahrzeugbau

  • Skidder / forestry
  • Skidder / forestry
  • Skidder / forestry
  • Skidder / forestry
  • Skidder / forestry
  • Skidder / forestry

116 - 176 HP | W110 / W130

Article: 00054122

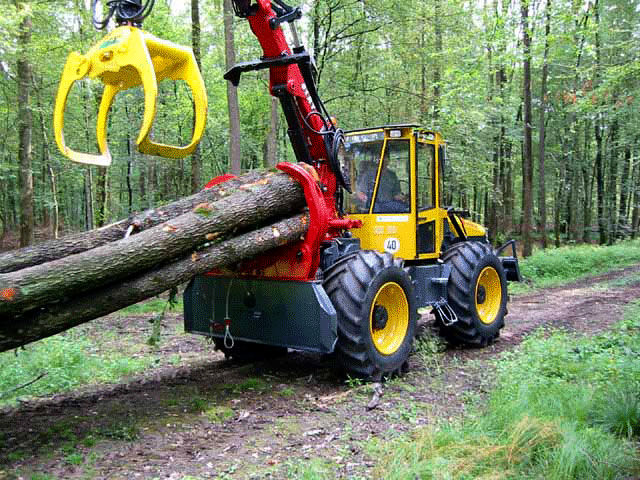

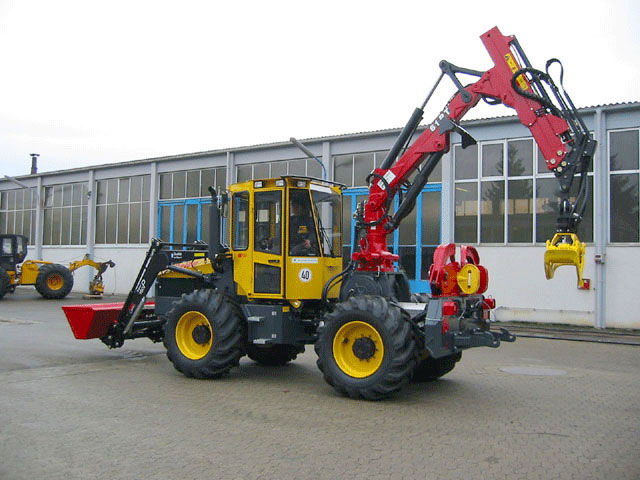

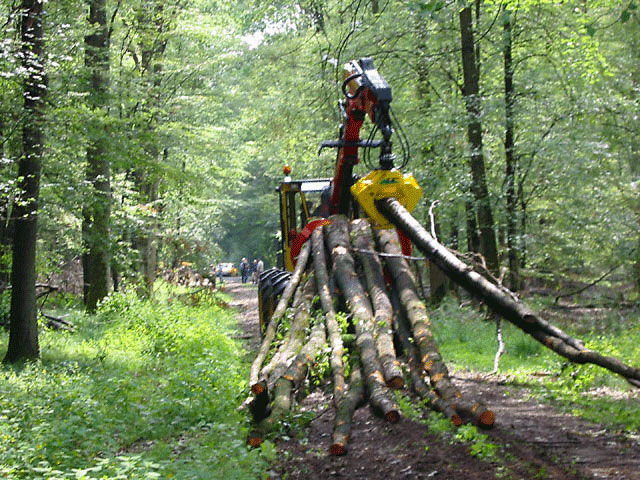

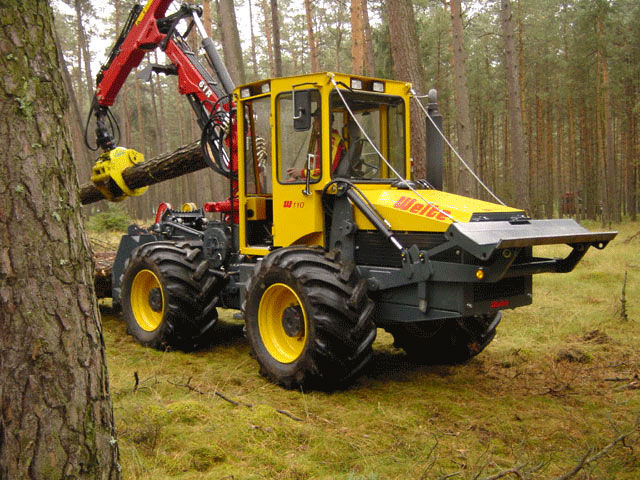

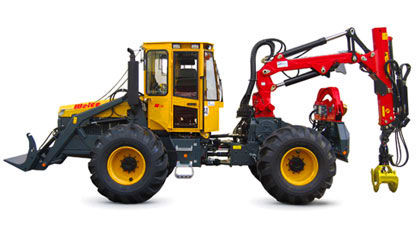

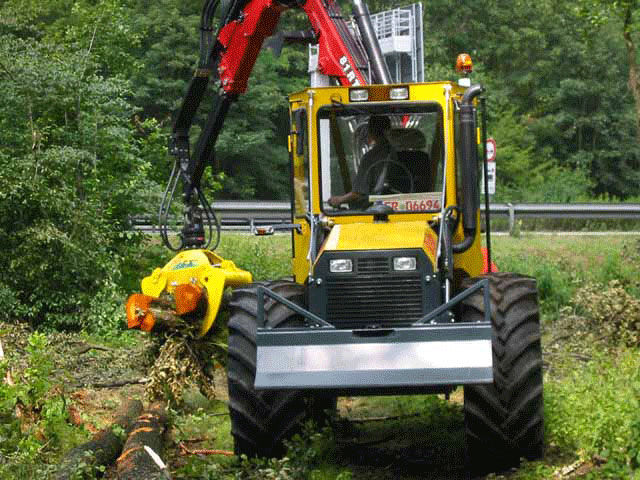

Skidder / forestry

Measures
Length 5,941 mm
Width 2,500 mm with 600 tires
Height 2,965 mm
Clearence underneath the gear case 580 mm
Turn radius approx. 2,400 mm

Engine
Deutz 4-Cylinder water-cooled TCD 2013
Displacement 4,764 ccm
W 110 85 kW (116 DIN HP) at 2,300 U/min.
W 130 113 kW (154 DIN HP) at 2,300 U/min.
W 130 129 kW (176 DIN HP) at 2,300 U/min.
Electrical engine control (EMR)
Fuel tank approx. 160 l

Hydraulic system
Variable pump flow with electronic control 200 l/min. at 2,000 U/min.
System-pressure of max. 380 bar

Power transmission
Hydrostatic traction drive electronically controlled
2-gear power divider with axle-interruption rear
Front and rear axles are special-axles with planet power heads and in oil bath running fins-brakes
Differential pawl 100%

Speed
First gear max. speed 9,5 14 km/h
Second gear max. speed 29 38 km/h

Electrical system
Electric tension 24 V
Battery capacity 2 x 92 Ah
Generator 80 A

Steering mechanism
Frame bending steering mechanism with 2 dual operating cylinders
For driving on the street steering orbitrol with emergency steering mechanism
Max. angle of turn +/- 46°

Specifications

  • Options: forestry, with grab
