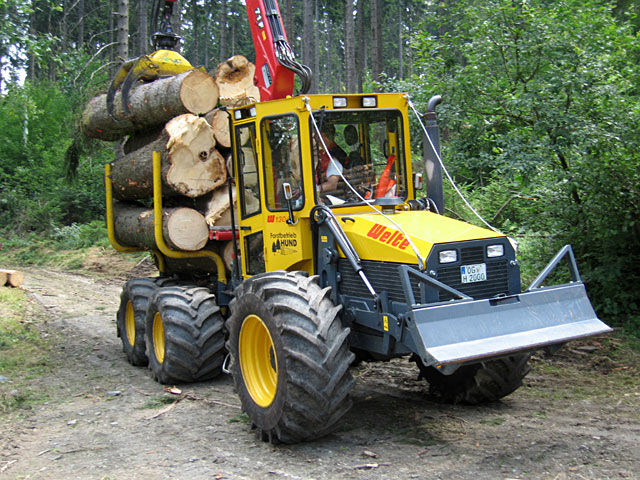

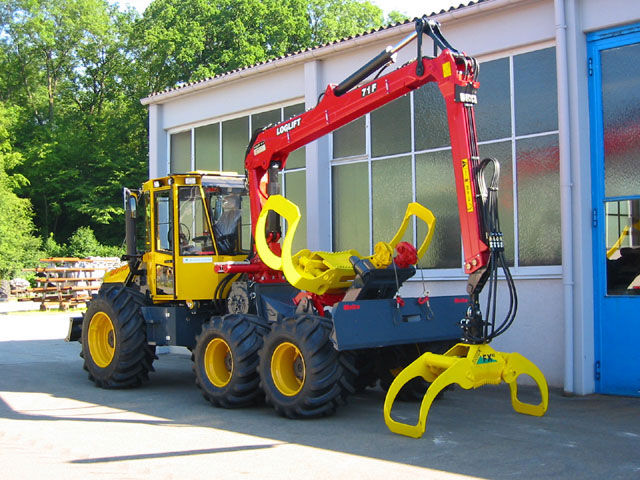

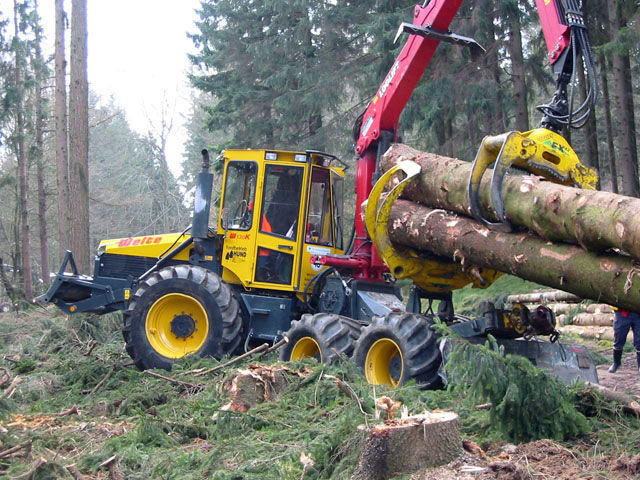

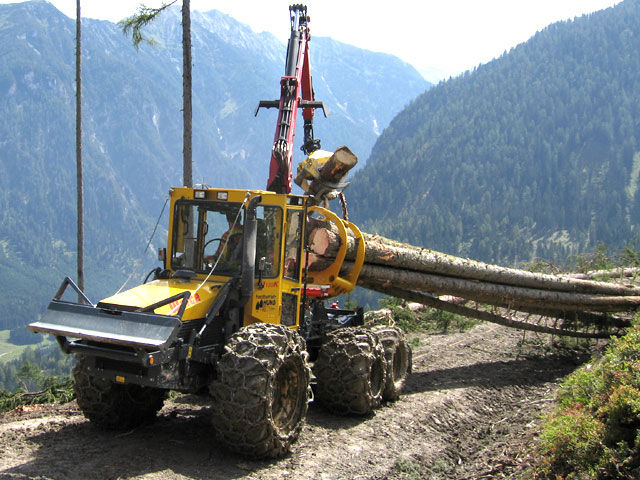

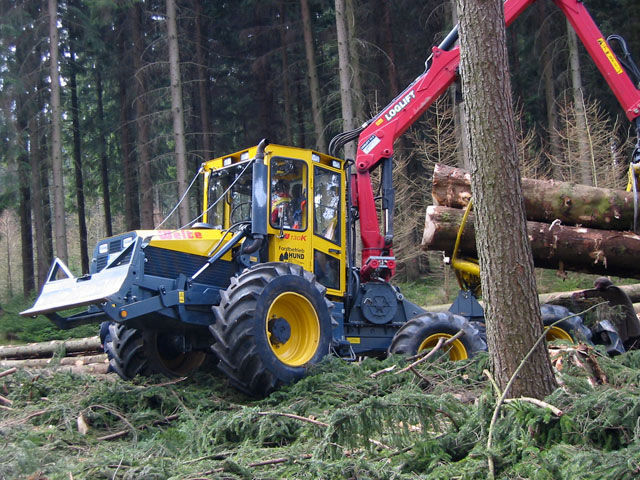

154 - 176 HP | W130K

Article: 00054123

Skidder / forestry

Measures
Length 7,130 mm
Width 2,500 mm with 600 tires
Height 3,440 mm
Clearence underneath the gear case 580 mm
Turn radius approx. 3,400 mm

Engine
Deutz 4-Cylinder water-cooled TCD 2013
Displacement 4,764 ccm
W 130K 113 kW (154 DIN HP) at 2,300 U/min.
W 130K 129 kW (176 DIN HP) at 2,300 U/min.
electrical engine control (EMR)
fuel tank approx. 160 l

Hydraulic system
Variable pump flow with electronic control 200 l/min. at 2,000 U/min.
System-pressure of max. 380 bar

Power transmission
Hydrostatic traction drive electronically controlled
2-gear power divider with axle-interruption rear
front and rear axles are special-axles with planet power heads and in oil bath running fins-brakes
differential pawl 100%

Specifications

  • Options: forestry, with grab
