H12 Plus

Article: 00054548

Wall formwork / metal / concrete

Formwork face: 5 mm steel
Magnetic ferritic stainless steel, T'CAR process (HUSSOR Innovation)
Standard Lengths:
0.30 m ? 0.60 m ? 0.90 m ? 1.20 m ? 2.40 m
Standard Heights:
0.50 m ? 0.60 m ? 1 m ? 1.50 m ? 2.80 m
(Other dimensions on request)

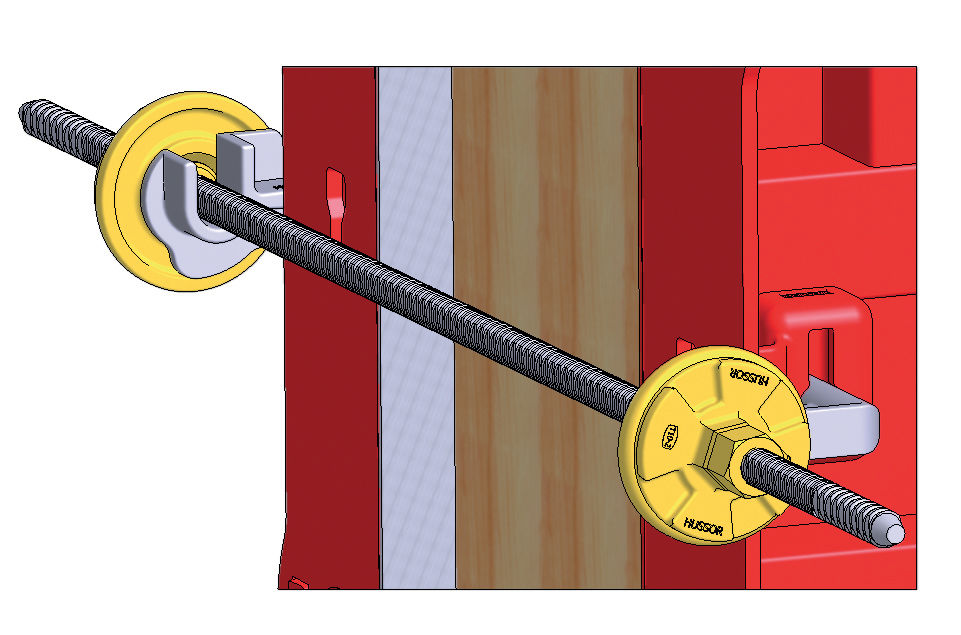

Fresh concrete pressure tolerance:
10 T/m² with D.23 tie rods
15 T/m² with D.27 tie rods
Angle formwork with adjustable angles
90° angle formwork for wall thicknesses from 15 cm to 30 cm

Specifications

  • Type: wall
  • Material: metal
  • Other characteristics: concrete
  • Pressure: Min.: 100 kN/m² (14.5 psi)
