  • Gas burner / monobloc / low-NOx

RS 310-410-510-610 series

Article: 00056178

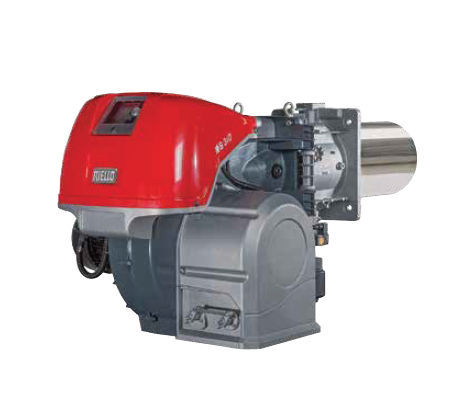

Gas burner / monobloc / low-NOx

The high power monoblock Burners Series RS, are the
result of intensive activities of technical research and
considerable investments, carried out in recent years, that
allowed the highest levels of technological development to
be achieved in the Industrial Burners context, confirming
the historical leadership of Riello in this important area of
energy management.
The remarkable results of performance, quality and
reliability, are now consolidated by the creation of new
models in the 3-6 MW range, RS 310-410-510-610, able
to summarize and concentrate the best technological
expertise of Riello.
The RS 310-410-510-610/M BLU burners series covers a firing
range from 1200 to 6250 kW, and it has been designed for
use in low or medium temperature hot water boilers, hot
air or steam boilers, diathermic oil boilers.
Operation can be ?two stage progressive? or, alternatively,
?modulating? with the installation of a PID logic regulator
or by external 4-20 mA/0-10 V signal.
The mechanical cam device of regulation allows to catch
up a high modulation ratio on all firing rates range.
The burners can, therefore, supply with precision the
demanded power, guaranteeing a high efficiency system
level and the stability setting, obtaining fuel consumption
and operating costs reduction.
The combustion head, engineered with advanced simulation
devices, guarantees reduced polluting emissions (NOx kWh).

Specifications

  • Power source: gas
  • Type: monobloc
  • Other characteristics: low-NOx
  • Power: Min.: 1200000 W (4094557.39 BTU/h)
