AC series

Article: 00056206

Gas burner / nozzle mix

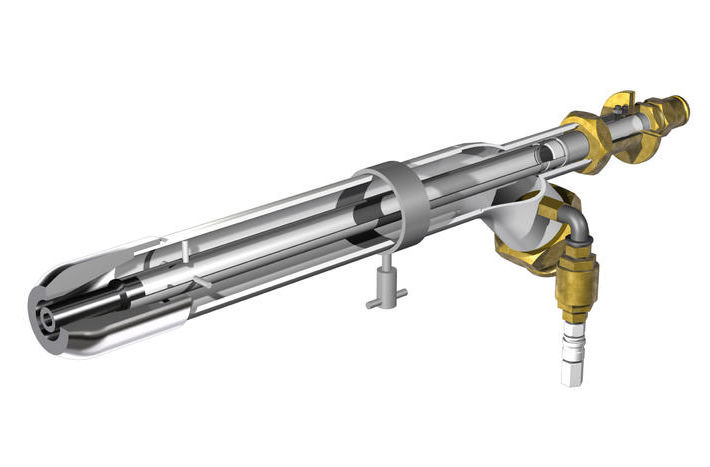

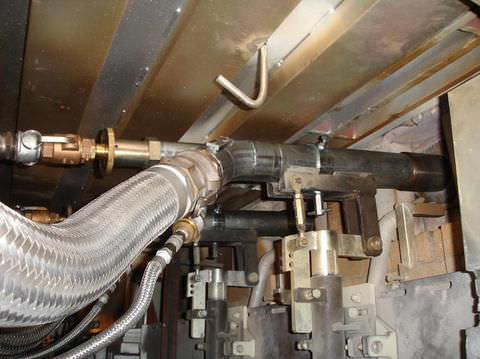

The HORN DUALFLAME AC gas burner is installed as an underport-burner in cross fired or end fired regenerative furnaces. Its design enables the furnace operator to adjust the flame formation smoothly within a wide range ? from short and sharp to long and soft ? by using two separate gas nozzles in one burner. The gas quantity flow in each nozzle can be controlled automatically by additional gas control valves in the burner gas supply stations. Thus the flame can be adjusted in that way to achieve optimum results in terms of flame length, energy and NOx-emission.

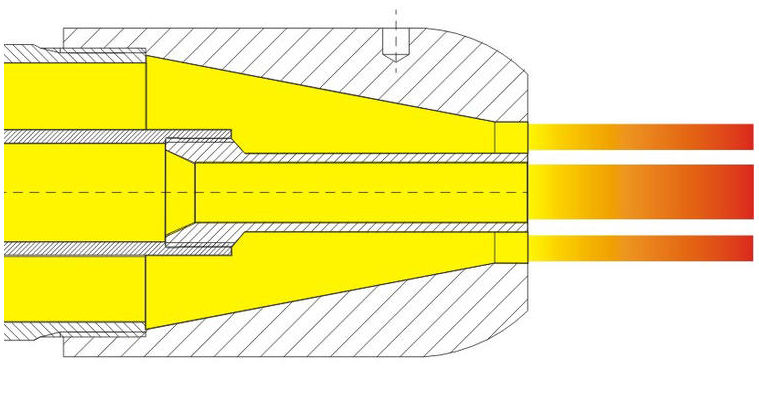

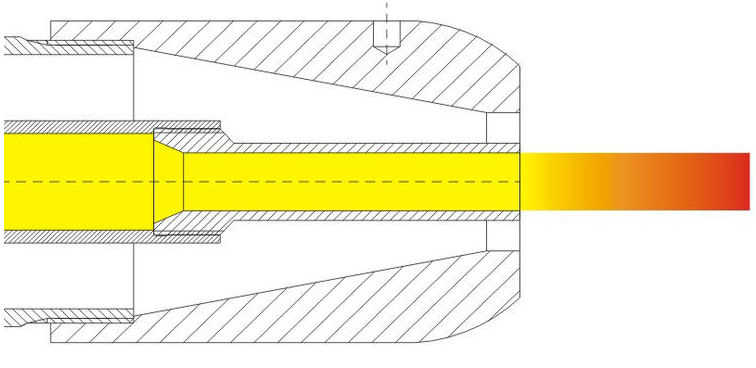

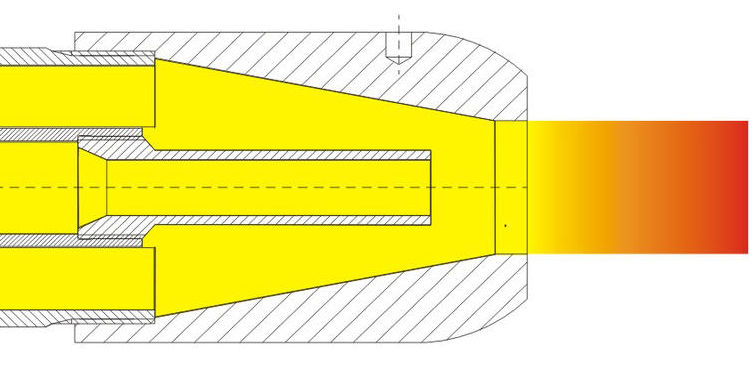

As is the case with the DUALFLAME MC burner, the AC burner works with two nozzles, an inner and an outer nozzle. The position of the inner nozzle can be controlled by a hand wheel at the rear of the burner in the same way as the DUALFLAME MC. Thus the flame can be shaped from soft and wide to sharp and strong.

The DUALFLAME AC (= Advanced Control) burner, however, works with an automatic control of the gas quantity towards the inner and outer nozzle. Therefore gas control valves for each nozzle are installed in the utility equipment in front of the burner. This enables the furnace operator to adjust the flame length automatically in the control room without manual adjustment directly at the burner under the hot burner port.

Specifications

  • Power source: gas
  • Type: nozzle mix
