  • CO2 gas transmitter / NDIR / for ambient air monitoring

EYC GS33 / EYC GS34

Article: 00056549

CO2 gas transmitter / NDIR / for ambient air monitoring

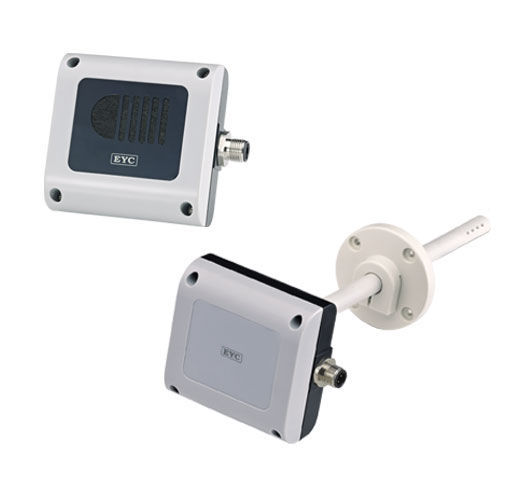

CO2 Transmitter for Wall / Duct Type(TYPE:GS33 / GS34)

Features
With the high CO 2 concentration indoors, people will feel tired
easily. So by controlling the CO 2 value relevantly , people will feel
more energetic. CO 2 transmitter now is substantially used inside
the buildings and some even being applied in agriculture to help
foster the growth the plants in a more healthier and quicker way.

Applications
HVAC control.
Instrument testing equipment.
Environmental control and monitoring system.
Ventilation system control for parking lot and building.
Green houses, fruit and vegetable storage.

Sensor Type:NDIR sensor
Measuring Range:2000/5000 PPM
Output calibration(ZERO & SPAN)adjustment range:factory software calibration
Signal Connection:3-wire
Overload Resistance:? 500? for 420mA ; ?10 K? for 010V
Response time(T63):GS33: 30sec. ; GS34: 15min.diffusion time
Power Supply:12~30VAC / 8~35VDC
Protection Degree:GS33 : IP54GS34 : IP64

Specifications

  • Gas type: CO2
  • Technology: NDIR
  • Applications: for ambient air monitoring
