Radius gauge

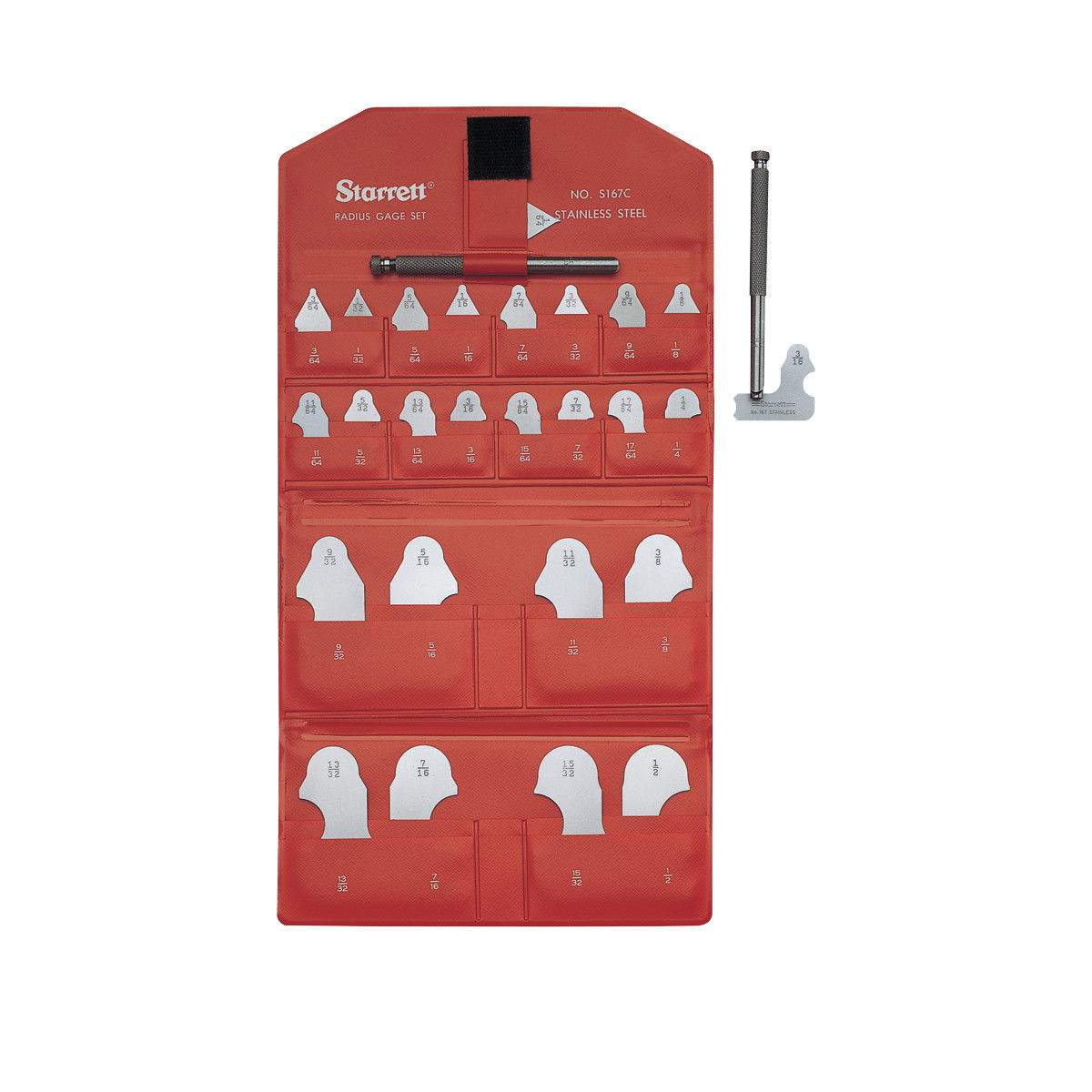

The Starrett S167 Radius Gage Inch Set without Holder features 1/32-17/64" radii range, 64ths increments, and 16 gages. SET, 1/32-17/64 by 64ths, 16 Gages without 110 Holder.

The Starrett 178 Series Fillet or Radius Inch Reading Gages are very useful for tool and diemakers, machinists, screw machine operators, patternmakers and other mechanics to lay out and check radii of tools, dies, patterns, and more. 30 Leaves, 1/32-1/4 Range, 64ths increments.

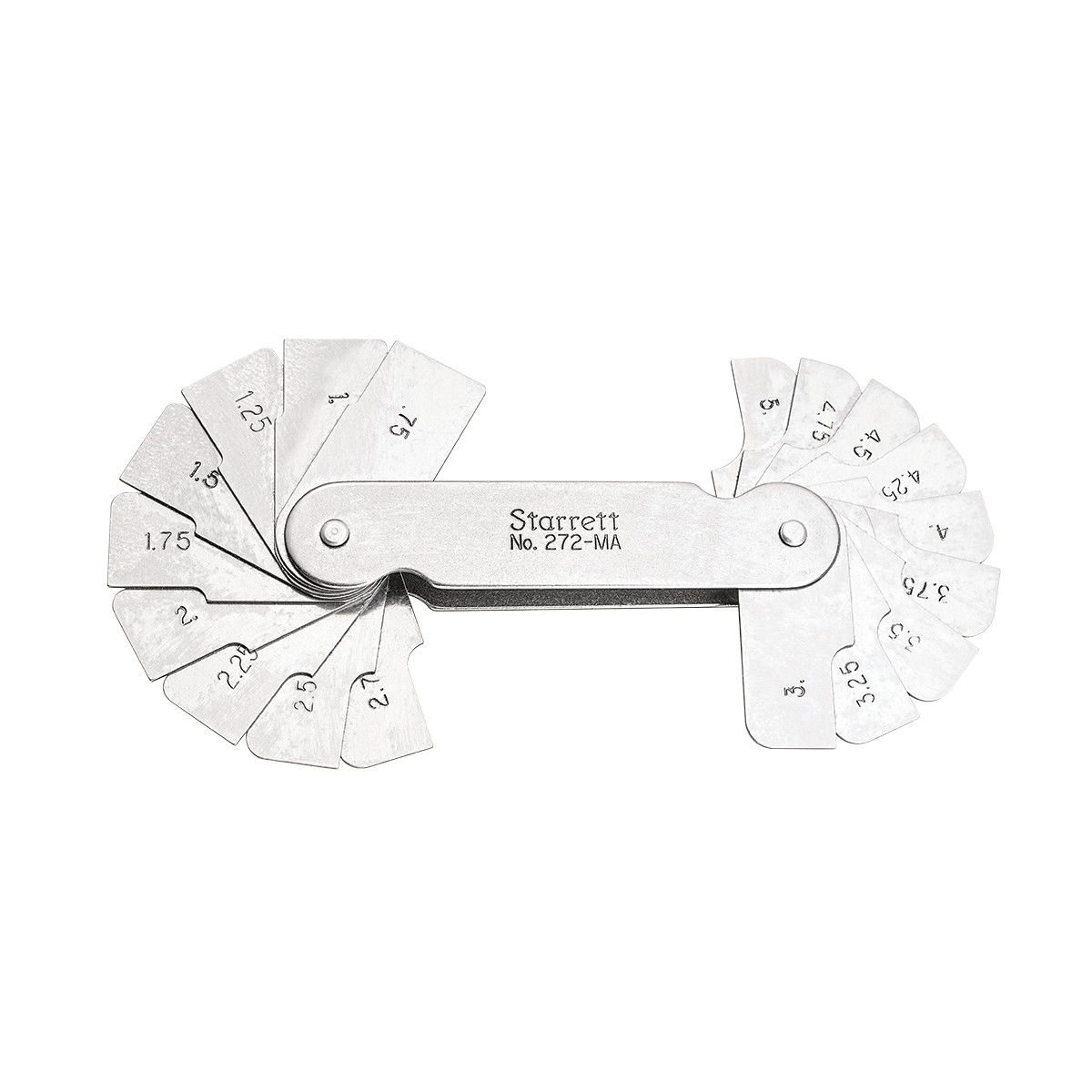

The Starrett 272 Fillet or Radius Gage is an external and internal radius on each leaf permits both concave and convex surfaces to be measured. The leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders. Each leaf is stamped with the radius size and has an eccentric mounting for clearance between the leaf and the case when the gage is opened. 16 Leaves, 1/32-17/64 Range by 64ths.
