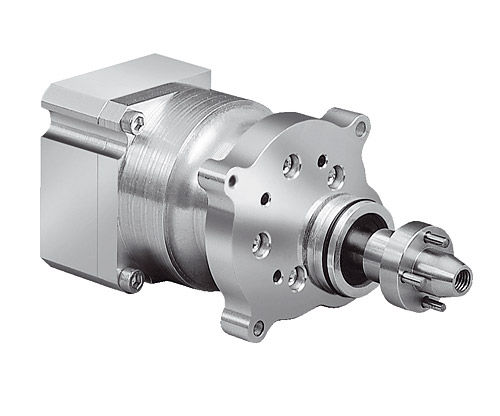

Planetary gear reducer / coaxial / custom

Request from the customer
With the redesign of a paint roboter the CNC-Drives for the rotating axis of the spray head should be optimized. The so far used gear boxes of a competition had compared to the new specification much more better datas.

the Project

solution
A Misalignment was realized with a planetary-spur gear combination. Through optimisation of the toothing and the bearing it was possible to increase the output torque 100 %. The reduction of the gearbox length from 186 mm to 112 mm effected a decreasing of the gearbox weight of 30 %.

Specifications

  • Type: planetary
  • Shaft orientation: coaxial
  • Other characteristics: custom
