600 x 650 x 800 mm | Concept 4 Axes

Article: 00060038

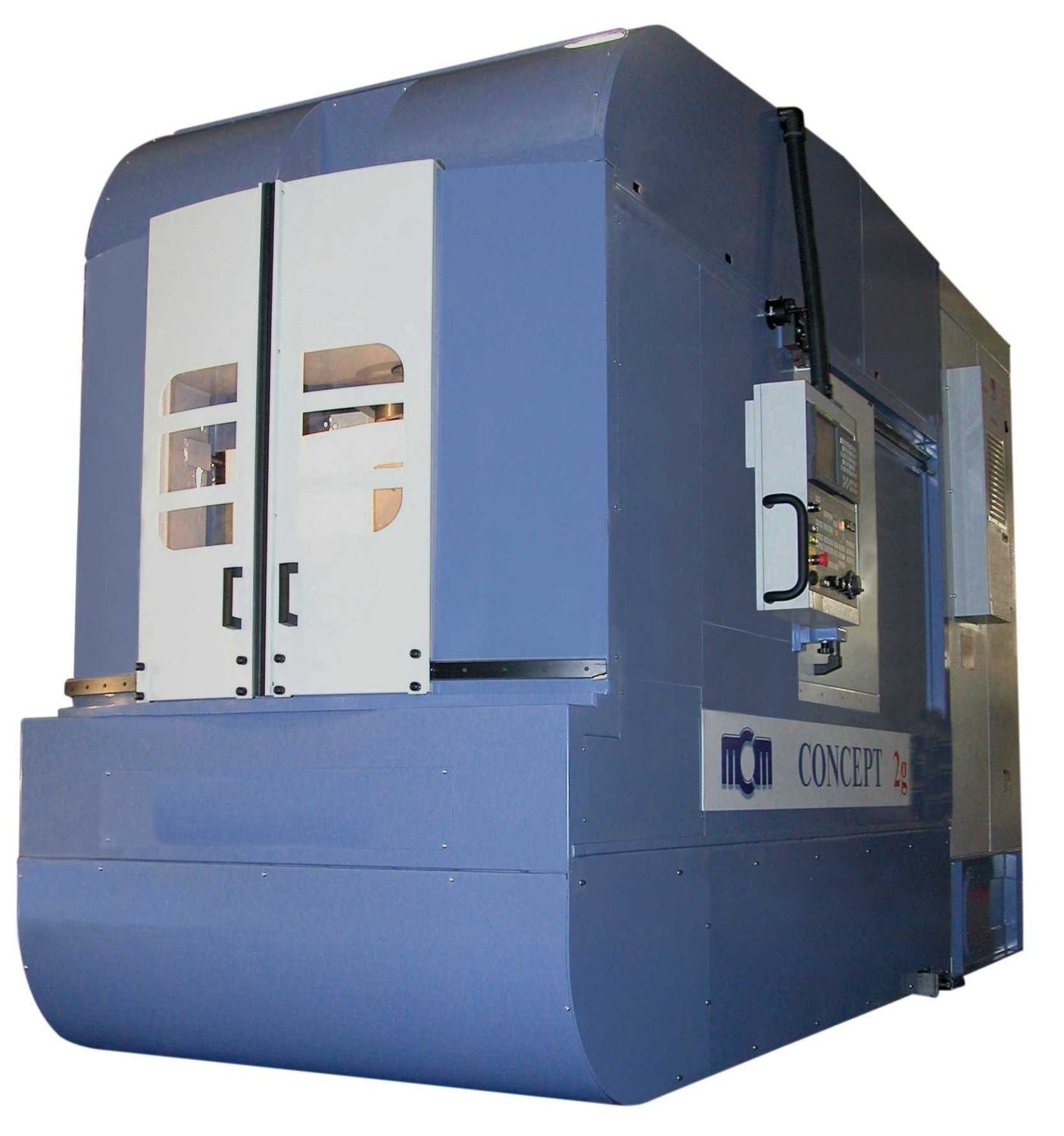

CNC machining center / 4-axis / horizontal / high-speed

Number of axes: 4

Axes Stroke: 600mm x 650mm x 800mm

Pallet Dimensions (mm): 400x500

Rapid feeds (m/min.): 75,0

Rotary table - number of positions: 3.600.000

Rotary table ? rotating speed (rpm): 60

Tool taper: HSK-A63

Max torque (Nm): 113/69/67

Power (Kw): 52,0/33,0/44,0

Spindle rotating speed (rpm): 16.000/20.000/28.000

Linear axes measuring system: pressurized Heidenhain optical scales

Rotating axes measuring system: pressurized Heidenhain encoders
General description

Highly modular and compact (overall dimensions 1500x6000x3000 mm), Concept is an extremely versatile machine designed for maximum productivity.

Its structure with barycentric drives combines the highest speed and acceleration with extreme precision and rigidity.

Concept can be equipped with a rotating tool magazine or a vertical magazine.

Specifications

  • Control type: CNC
  • Number of axes: 4-axis
  • Spindle orientation: horizontal
  • Other characteristics: high-speed, high-precision, with rotary table
  • X travel: 600 mm
  • Y travel: 650 mm
  • Z travel: 800 mm
