Hydraulic Power Units

As Tech Industrie Und Spannhydraulik Gmbh

  • Electrically-driven hydraulic power unit / for tensioning devices / battery-powered / portable
  • Electrically-driven hydraulic power unit / for tensioning devices / battery-powered / portable
  • Electrically-driven hydraulic power unit / for tensioning devices / battery-powered / portable

EDP xx 400 series

Article: 00062293

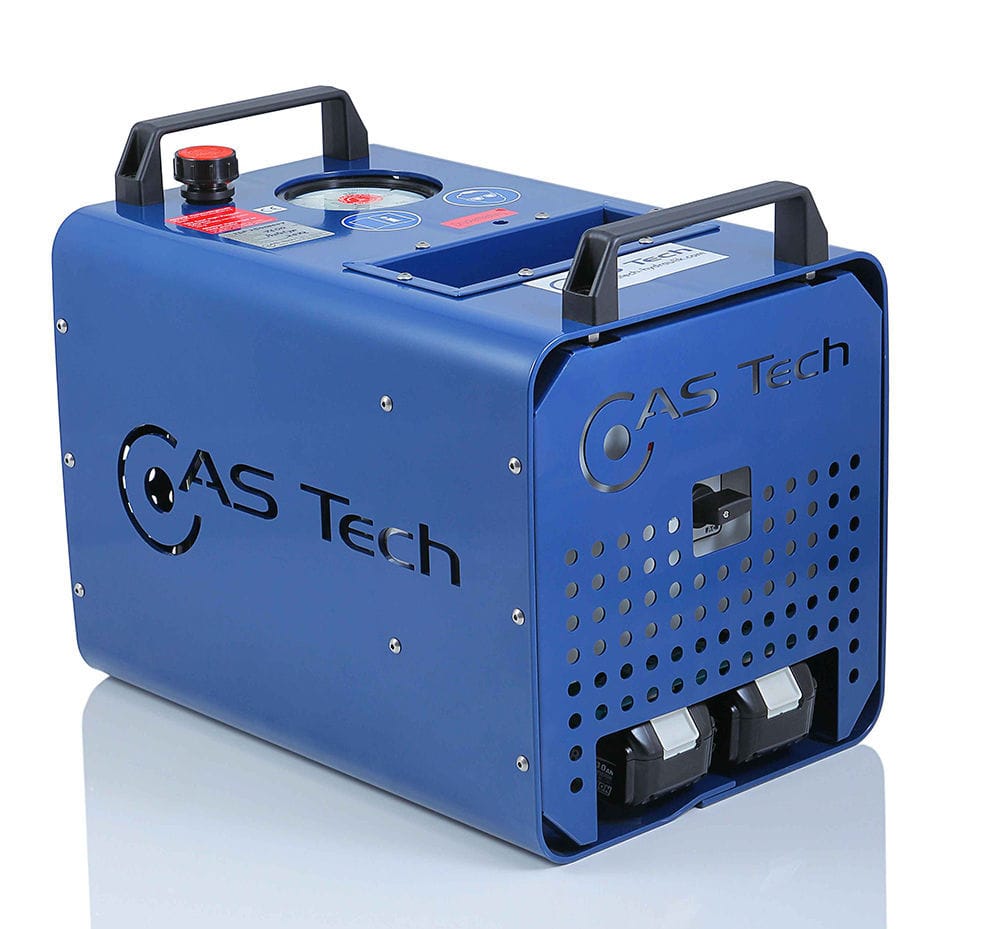

Electrically-driven hydraulic power unit / for tensioning devices / battery-powered / portable

Our battery-driven electro hydraulic pumps are available in the pressure ranges of 1000, 1600 and 2500 bar. They are mainly used where a network supply is not available or difficult to reach. The two batteries will allow a continuous operation for approximately 2.5 hours. In the meantime 2 additional batteries can be charged with our fast chargers. These pumps are used especially in the new installation of wind power turbines on sites as well as for the installation of machines. These electro hydraulic units can operate with our documentation system BodAS as well as a wireless remote control similar to our standard electro hydraulic pumps.

Standard design

Motor 36 VDC
Pressure 1600 bar
Flow rate 0,6l/min
Tankvolume 3 liter
Support frame with ergonomic handles and cable winder
Operation with 2 rechargeable batteries 18V

Options

Pressure 1000 bar/2500 bar
Wired remote control with pressure display
Wireless remote control
Documentation system
Power adapter for network operation 110V/60Hz and 230V/50Hz

Specifications

  • Power source: electrically-driven
  • Applications: for tensioning devices
  • Other characteristics: battery-powered, portable
  • Operating pressure: 1600 bar (23206.04 psi)
  • Flow rate: 0.61 l/min (0.16 us gal/min)
  • Tank volume: 3 l (0.79 gal)
