Implement Industry Ideas
  • Cold press / hydraulic

PM/DE/1-LL

Article: 00062753

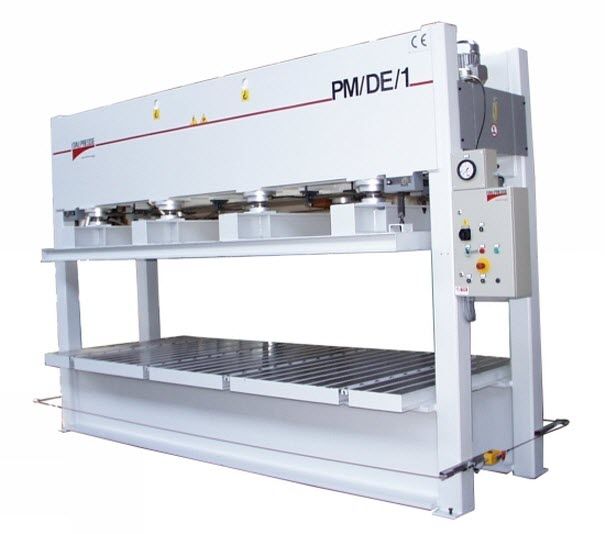

Cold press / hydraulic

TECHNICAL FEATURES:

- Cylinder stroke mm. 400
- Press opening - adjustable mm. 600/1000
- Loading on the side (long side)
- Downstroke movement of top platen
- Total pressure (capacity): metric ton 90/120/160
- Nr. 6 double-action hydraulic pressing cylinders
- Adjustable work pressure by mean of pressure gauge
- Automatic pressure recovery
- Safety press closing control with two-hands push-buttons
- Safety rope on four sides
- CE Safety standards

AVAILABLE SIZES (platen sizes):

mm. 2500 x 1300
mm. 3000 x 1300
mm. 3300 x 1300
mm. 3500 x 1300

More sizes and pressures available on request

OPTIONAL DEVICES:

- POP-UP ROLLERS on bottom platen to ease stack loading
- FULL STROKE of the top platen 0-1000 mm
- ELECTRIC EXLUSION OF ONE PAIR OF CYLINDERS, with material sensor

Specifications

  • Process type: cold
  • Operation: hydraulic
  • Pressing force: 1600 kN, 1200 kN, 900 kN
