  • Gas analyzer / biogas / CH4 / H2S

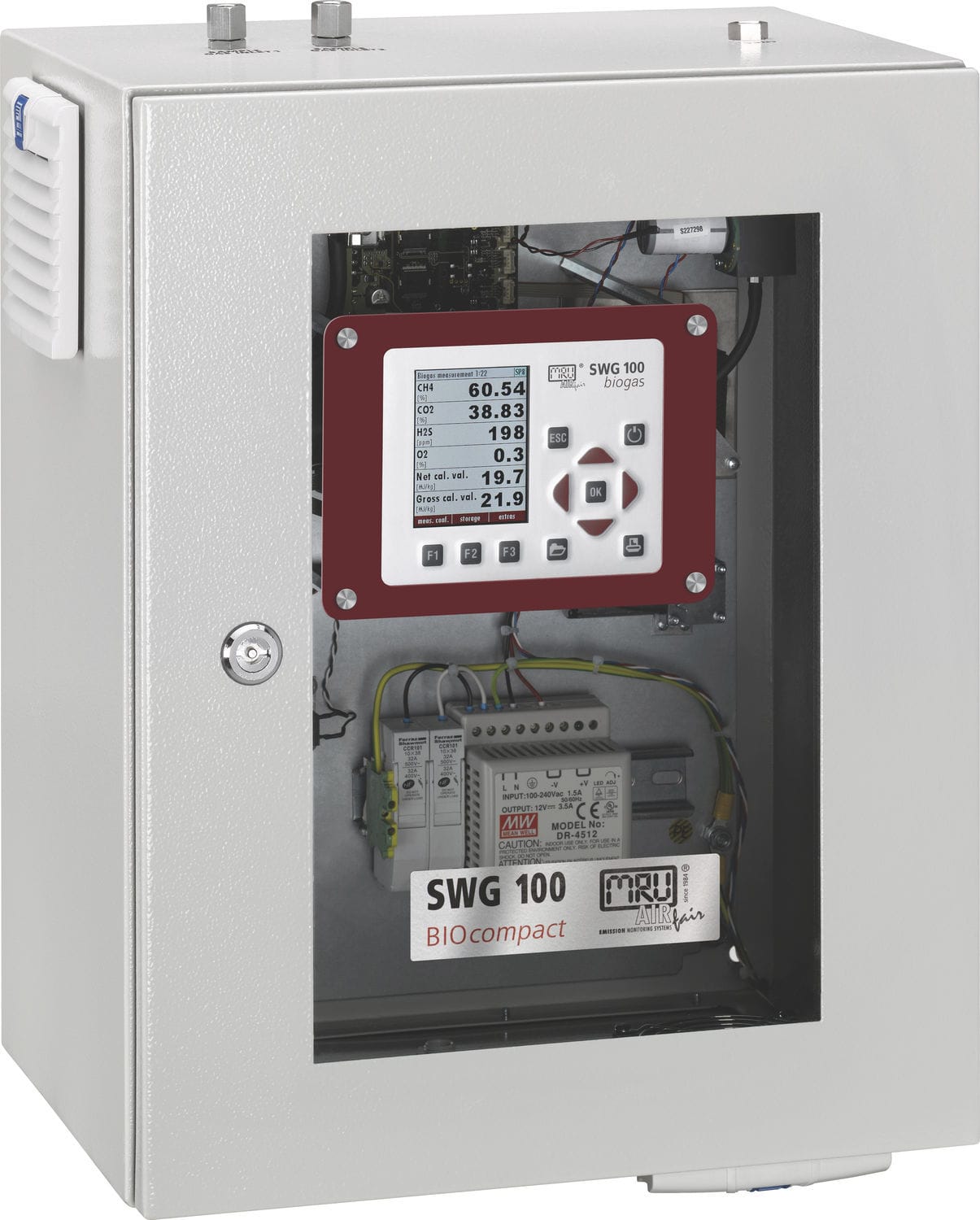

SWG100 Bio

Article: 00062820

Gas analyzer / biogas / CH4 / H2S

The new SWG100BIOcompact is a cost effective fixed biogas analyser suitable for farm based AD plants.

Single or dual sample point
02, CH4, CO2% and H2S measurements
Timed and manual sampling
Integrated gas pump and water trap with auto-drain function
4-20 mA , modbus and profibus outputs
Plug and Play pre-calibrated user replaceable sensors
Low cost of maintenance, easy to operate
The SWG100 BIOcompact is a cost effective fixed biogas Analyser ideal for use on AD plant and water treatment plants.

The biogas analyser can be configured to measure Oxygen (02%), Methane ( CH4%), Carbon Dioxide(CO2%) and Hydrogen Sulphide (H2S) from a single or dual sampling point.

The system automatically measure up to 24 times a day (with user defined intervals) or on demand by simply pressing a button. This features allow the operator to take additional gas readings as required outside the timed measurement sampling programme.

The Biogas readings are automatically stored to the internal SD card for easy transfer to a PC for future analysis. No special software is required as data are saved in CSV format.

The system offers standard RS 485 and Modbus communications, and optional 4 x 4-20 mA analogue output and profibus communication for remote data transfer.

Specifications

  • Measured value: gas
  • Gas type: biogas, CH4, H2S, hydrogen, O2
  • Technology: digital
  • Portability: fixed
  • Domain: water treatment
